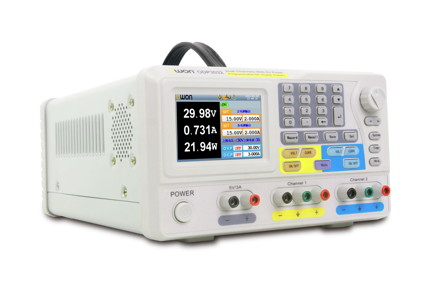

OWON ODP3032 Programmable Triple Output DC Power Supply (30V/3A)
USD 441.60
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Output Rating | |||
| Voltage Output | 0~+5V | 0~+30V | 0~+30V |
| Current Output | 0~3A | 0~3A | 0~3A |
| Ripple and Noise | from 20 Hz to 7 MHz | ||
| Voltage | ≤300 μVrms / 2 mVpp | ≤300 μVrms / 2 mVpp | ≤300 μVrms / 2 mVpp |
| Current | NA | ≤3mArms | ≤3mArms |
| Load Regulation | |||
| Voltage | ≤0.01% + 3mV | ||
| Current | ≤0.01% + 3mA | ||
| Line Regulation | |||
| Voltage | <0.01% + 2mV | ||
| Current | ≤0.01% + 1mA | ||
| Settings Accuracy | |||
| Voltage | None | ≤0.05% + 1mV | ≤0.05% + 1mV |
| Current | None | ≤0.1% + 1mA | ≤0.1% + 1mA |
| Readback Accuracy | |||
| Voltage | None | ≤0.05% + 1mV(<10V) | ≤0.05% + 1mV(<10V) |
| Current | None | ≤0.1% + 1mA | ≤0.1% + 1mA |
| Setting Resolution | |||
| Voltage | None | 1mV | 1mV |
| Current | None | 1mA | 1mA |
| Readback Resolution | |||
| Voltage | None | 1mV (<10V),10mV (≥10V) | 1mV (<10V),10mV (≥10V) |
| Current | None | 1mA | 1mA |
| AC Input Ratings | 110V/220V AC±10%,47Hz~63Hz | 350VAMAX | |
| Operating Temperature | 0~40℃, 0~90%RH | ||
| Weight | 9.8Kg | ||
| Dimensions | 298mmW X 202mmH X 450mmD | ||
Warranty : 12 month
Manufacture : Owon - China
Origin : China
| Modle | ODP3032 | |||
| channel | Channel 1/Channel 2 | Fixed 5V | ||
| DC Output Ratings | Voltage | Independent/Parallel | 0～30V | 5V |
| Series | 0～60V | |||
| Plus-minus | －30V～30V | |||
| Current | Independent/Series/Plus-minus | 0～3A | 3A | |
| Parallel | 0～6A | |||
| Line Regulation | CV | ≤0.01% + 2mV | ≤3mV | |
| CC | ≤0.1% + 1mA | |||
| Load Regulation | CV | ≤0.01% + 3mV | ≤0.1%+3mV | |
| CC | ≤0.2% + 3mA | |||
| Noise and Ripple (20Hz～7MHz) |
CV | ≤300 μVrms / 2 mVpp | ≤300 μVrms/ 2 mVpp | |
| CC | ≤3mArms | |||
| Settings Resolution | Voltage | 1mV | None | |
| Current | 1mA | None | ||
| Settings Accuracy （25℃±5℃) |
Voltage | ≤0.05% + 1mV | None | |
| Current | ≤0.1% + 1mA | None | ||
| Read Back Resolution | Voltage | 1mV (＜10V) 10mV (≥10V) | None | |
| Current | 1mA | None | ||
| Read Back Accuracy （25℃±5℃) |
Voltage | ≤0.05% + 1mV(＜10V) ≤0.05% + 10mV(≥10V) | None | |
| Current | ≤0.1% + 1mA | None | ||
| Display | ||||
| Display Type | 3.9 inch colored LCD (Liquid Crystal Display) | |||
| Display Resolution | 480 (Horizontal) × 320 (Vertical) Pixels | |||
| Display Colors | 65536 colors, TFT screen | |||
| Mechanical Specifications | ||||
| Dimension | 298mm(L)× 202mm(H)×450mm(D) | |||
| Weight | About 9.8 kg | |||
