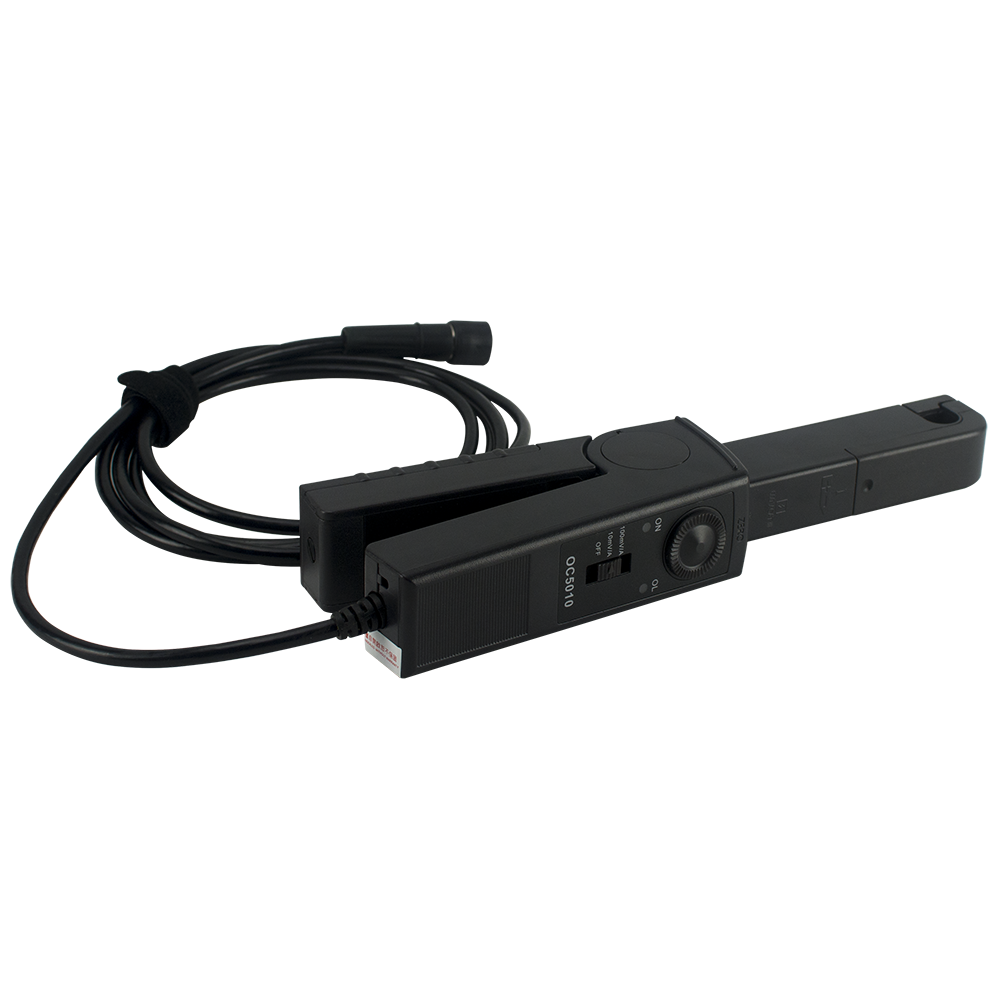

OWON OC5010 AC_DC Current (100mV/A, 10A, 100KHz)
ManufacturerOWON(View more products from this manufacturer)
ModelOC5010
USD 576.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Range: 100mV/A
Current range: 50mA-10A peak
Output signal (percentage error): 3%±5mV
Frequency range: DC~100KHz
Phase shift: DC~65Hz <1.5
Noise:6mV
Slew rate: 0.3V/us
Rise/fall time: <3us
Load impedance: > 1mΩ and < 100pF
Input impedance: 0.01Ω
Max captured conductor size: diameter 11.8mm
Battery: 9V alkaline battery
Overload indicator: red LED means the measure current is too big and need to change the measuring range
Dimension and weight: 231 x 36 x 67mm, 330g (included battery)
