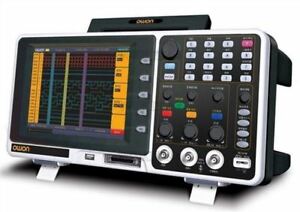

OWON MSO7102T Mixed Logic Analyzer Benchtop Oscilloscope (100M, 1GS/s, 2CH, 2M)

Bandwidth:100MHz

Sample Rate:1GS/s

Vertical Resolution (A/D)):14 bits

Record length:2M record length

Waveform Refresh Rate:70,000 wfms/s

Horizontal Scale (s/div)):2ns/div - 1000s/div, step by 1 - 2 - 5

Channel:2

Display:8" color LCD, 8.0'' color LCD ,640 × 480 pixels

Vertical Sensitivity:2mV/div - 10V/div

Trigger Mode: Edge, Video, Alternate, Pulse, and Slope

Acquisition ModeNormal,Peak Detect,and Average

Record Length2M points

Waveform Storage:4 waveforms

Waveform Math:＋, －, ×, ÷, FFT

Battery: 7.4V 8000mAh (optional)

Dimensions (W × H × D): 370 × 180 × 120 (mm)

Weight (without package): 2.20 kg

Accessories: Power Cord, CD Rom, Quick Guide, USB Cable, Probe Adjust, Probe, Soft Bag (optional), Battery (optional); Logic analyser Module
