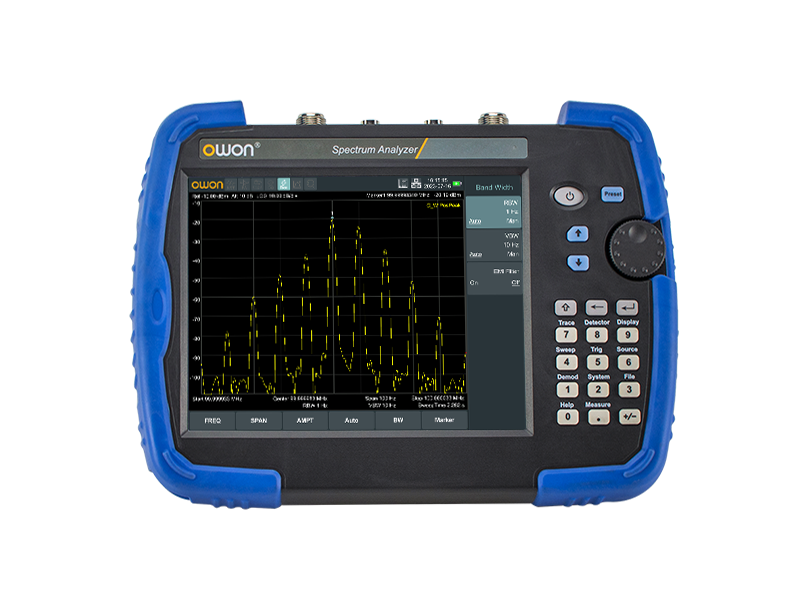

OWON HSA1075 Handheld Spectrum Analyzer (9 kHz to 7.5GHz)

Frequency

Frequency Range

HSA1016-TG; 9 kHz to 1.6GHz

HSA1036-TG; 9 kHz to 3.6GHz

HSA1075-TG; 9 kHz to 7.5GHz

Frequency Span

Span Range: 0 Hz, 100 Hz to max frequency of instrument

Span Uncertainty: ± span / (sweep points-1)

SSB Phase Noise (20℃ to 30℃,fc=1 GHz, RBW=1 kHz,VBW=1 kHz)

Carrier Offset:

10 kHz:  < -106 dBc/Hz (Typical)

100 kHz:  < -104 dBc/Hz (Typical)

1 MHz: < -115 dBc/Hz (Typical)

Bandwidth

Resolution Bandwidth: 1Hz to 1MHz（in 1 -3-5-10 sequence）

RBW Accuracy: < 5%, typical (RBW ≤ 1 MHz)

Resolutio Filter Shape Factor (60 dB : 3 dB): <5: 1 typical (digital and close to Gaussian shape)

Video Bandwidth (VBW): 10 Hz to 3 MHz

Amplitude and level

Amplitude measurement range: DANL to +20 dBm, 1 MHz to 3.6 GHz, Preamp Off

Reference Level: -80 dBm to +30 dBm, 0.1dBm by step

Preamp: 20 dB, nominal, 9 kHz to 3.6 GHz

Display Average Noise Level  (Input Attenuation= 0 dB, Sample Detector ,Trace Average ≥20, 20℃ to 30℃,Input Impedance=50 Ω ,RBW normalizes to 1Hz)

Preamp Off

9 kHz to 1 MHz:  -95 dBm (Typical), <-88 dBm

1 MHz~500 MHz: -140dBm（Typical)，<-130 dBm

500 MHz~3.6GHz: -138 dBm (Typical),<-128 dBm

3.6G Hz~6GHz:  -134 dBm (Typical),<-124 dBm

6G Hz~7.5GHz; : -129 dBm (Typical),<-119 dBm

Preamp On:

9 kHz to 1 MHz:  -135 dBm (Typical), <-128 dBm

1 MHz~500 MHz: -160dBm（Typical，<-150 dBm

500 MHz~3.6GHz: -158 dBm (Typical),<-148 dBm

3.6G Hz~6GHz: -154 dBm (Typical),<-144 dBm

6G Hz~7.5GHz:  -149 dBm (Typical),<-139 dBm

Frequency response: (20℃ to 30℃, 30% to 70% relative humidity, input attenuation=20 dB, reference frequency=50 MHz)

Preamp Off: (fc≥100K): ±0.8 dB；±0.4 dB (Typical)

Preamp On (fc≥1 MHz): ±0.9 dB；±0.5 dB (Typical)

Difference and Accuracy

Absolute Amplitude Accuracy:

20℃ to 30℃, fc=50 MHz, Span=200 kHz, RBW=10 kHz, VBW=10 kHz, peak detector, 10 dB RF attenuation,95% confidence level

Preamp Off ±0.4 dB, input signal level -20 dBm

Preamp On ±0.5 dB, input signal level -40 dBm

Tracking Source Output, signal generator

Frequency Range

HSA1016-TG: 100 kHz to 1.6 GHz

HSA1036-TG: 100 kHz to 3.6 GHz

HSA1075-TG: 100 kHz to 7.5 GHz

Output power level range: -40 dBm to 0 dBm

Output power level resolution: 1 dB

Output flatness: ± 3 dB

Interface: USB Host / USB Device/ LAN

Display: 8 inches TFT LCD

Appearance

Dimensions: 265 mm (W) × 190 mm (H) × 58 mm (D)

Weight: Approx. 2.5 kg (without package)
