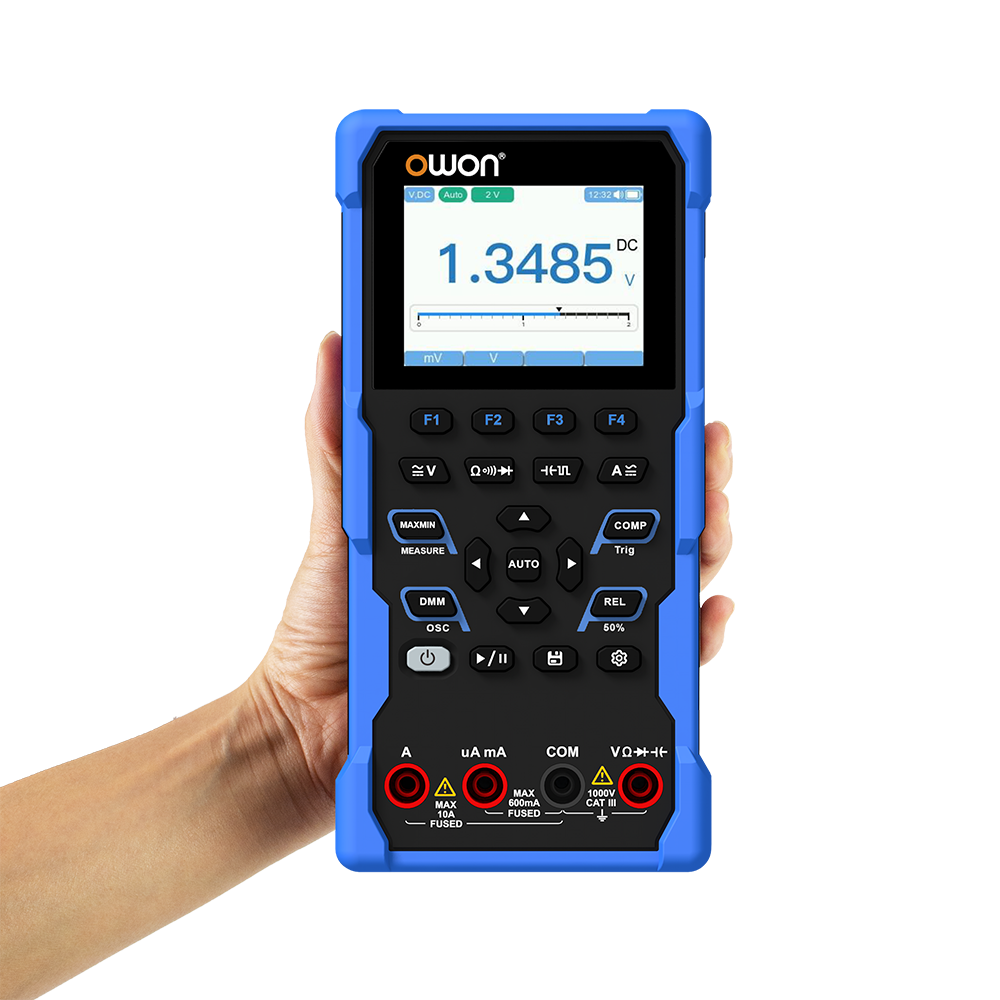

OWON HDS120 Oscilloscope Multimeter (1Mhz, 1000VDC, 750VAC, 20ADC, 10AAC)

Measurement Range:

DC Voltage(V): 20.000mV~1000.0V

AC Voltage (V): 20.000mV~750.00V

DC Current (A): 200.00uA~20.000A

AC Current (A: 200.00uA~10.000A

Resistance(Ω): 200.00Ω~100.00MΩ

Capacitance(F): 2.000nF~20.00mF

Frequency (Hz): 200.00Hz~20.000MHz

Duty Cycle: 0.1%~99.9%(typical value：Vrms=1V,f=1kHz); 0.1%~99.9%(≥1kHz)

Diode: 3.0000V

On-Off: 1000.0Ω

Display: 20000

Oscilloscope Specification:

Analog bandwidth: 1MHz (only ACV scale)

Channel: 1

Time base range: 2.5uS~10S/div

Voltage vertical sensitivity range: 30mV~500V/grid

Vertical amplitude accuracy: ±（5% + 0.2div）

Maximum voltage limit: 1000V DC+AC Peak value

Trigger mode: Auto/Normal/Single

Autoset: Time base/Vertical amplitude/Trigger value

Maximum sample: 5.0Msps

Input impedance: ≈10MΩ

Time base accuracy: ±（0.01% + 0.1div）

Current vertical sensitivity range: 100μA~5A/grid

Measurement function: Vmax,Vmin,Vp-p,Vavg,Vrms,Hz

Maximum current limit: 15A DC+AC Peak value

Trigger edge: Rise edge/Fall edge

Other Specification:

Low battery indication: √

Backlight: √

Safety Compliance: CATⅢ1000V

Battery: 18650

Sleep Mode: √

Input Protection: √

LCD Size: 2.8” LCD

Relaive Measurement: √

Input Impedance: ≥10MΩ

Weight(without package): 0.35kg

Dimension（L*W*H）: 93mm x 41.5mm x 188mm
