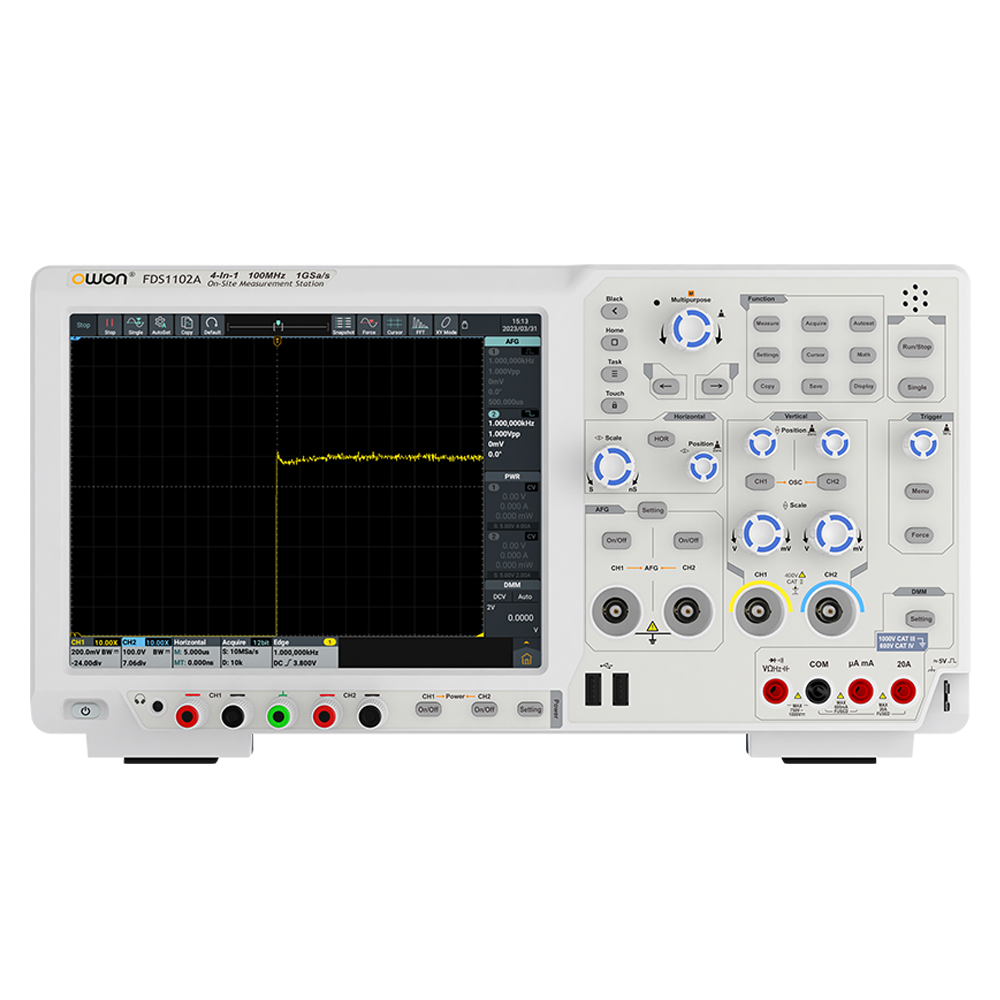

OWON FDS1102 Multifunction DSO (100MHz; 1GS/s; 8 bits)

Oscilloscope Specifications:

Bandwidth: 100MHz

Sample Rate: 1GS/s

Vertical Resolution (A/D): 8bits

Channel: 2

Input impedance: 1MΩ ± 2%, in parallel with 15pF ± 5pF

Input coupling: DC, AC, and GND

Record length: 10M

Horizontal Scale (s/div): 2ns/div - 1000s/div, step by1 - 2 - 5

Max Input Voltage: 1MΩ ≤ 300Vrms;

Vertical Sensitivity: 1mV/div - 10V/div (at input)

Cursor Measurement: △V, and △T between cursors, △V and △T between cursors, and auto- cursors

Automatic Measurement: Period, Frequency, +Pulse Width, -Pulse Width, Rise Time, Fall Time, Screen Duty, +Duty Cycle, -Duty Cycle, PK-PK, RMS, Overshoot, Max, Min, Top, Cycle RMS, Base, Amplitude, Preshoot, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area、Cycle Area, Delay A→B, Delay A→B, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF

Waveform Math: ＋, －, ×, ÷, FFT, User Defined Function, digital filter

Waveform Storage: 128MB,100 waveforms

Lissajou's Figure:

Bandwidth: full bandwidth

Phase Difference: ±3 degrees

Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, LIN and CAN

Line / Field Frequency (video): NTSC, PAL and SECAM standard

Trigger Mode: Auto, Normal, and Single

Interface: HDMI；USB device *1, USB Host *4 ；Trig Out(P/F)；LAN；earphone

Frequency Counter: available

WIFI （Optional): available

Display: 10.4 inch（1024×768）touch LCD

Power Specifications:

Channel: CH1/CH2

Rated Output（0℃-40℃):

Max Voltage: 0.1-15V

Max Current: 0.1-3A

Max Power: 15W

Setting Resolution:

Voltage: 10mV

Current: 10mA

Multimeter Specification:

Full Scale Reading: 4½ digits

Frequency Response: (40 - 1000) Hz

Auto Range: √

Ture rms: √

Measure: oltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continue，Diode test

Waveform Generator Specification:

Max Frequency Output: 50MHz

Sample Rate: 300MS/s

Channel: 2

Amplitude (HR): 2mVpp - 10Vpp

Waveform Length: 8K
