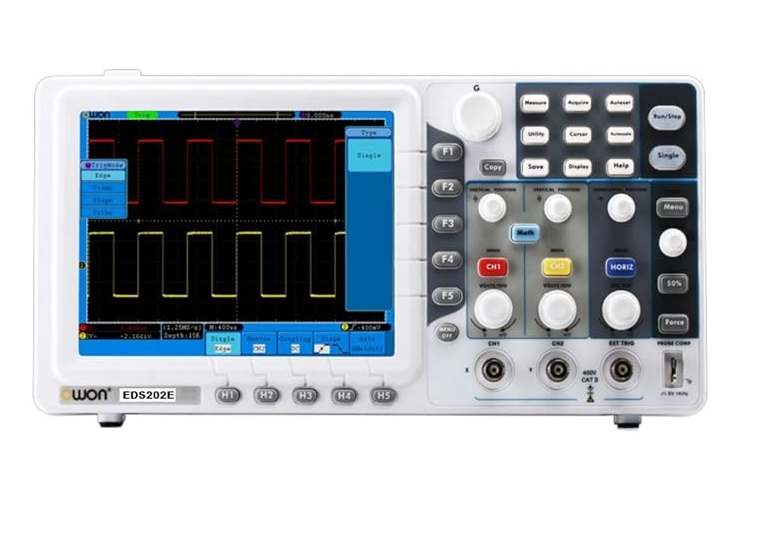

OWON EDS202E Smart Digital Storage Oscilloscopes (100MHz; 1GS/s)

Bandwidth 100MHz

Sample Rate (real time) 1GS/s

Horizontal Scale (s/div) 2ns/div～100s/div, step by 1~2~5

Rise Time (at input, typical) ≤3.5ns

Channel 2 + 1 (external)

Display 8" color LCD, TFT display , 800 × 600 pixels, 65535 colors

Max Input Voltage 400V (PK - PK) (DC+AC, PK - PK)

Record Length 10M

Vertical Resolution (A/D) 8 bits (2 Channels simultaneously)

Vertical Sensitivity 2mV/div～10V/div (at input)

Trigger Type Edge, Pulse, Video, Slope, Alternate Trigger Mode Auto, Normal, Single Line / Field Frequency

(video) NTSC, PAL, and SECAM standard

Automatic Measurement Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay , Delay

Waveform Math ＋, －, ×, ÷, invert, FFT

Waveform Storage 15 waveforms

Communication Interface USB host, USB device, Pass / Fail, LAN,

Cymometer available

Power Supply 100V - 240V AC, 50/60Hz, CAT Ⅱ

Dimension (W×H×D) 348 × 170 × 78 (mm)

Weight (without package) 1.50 kg
