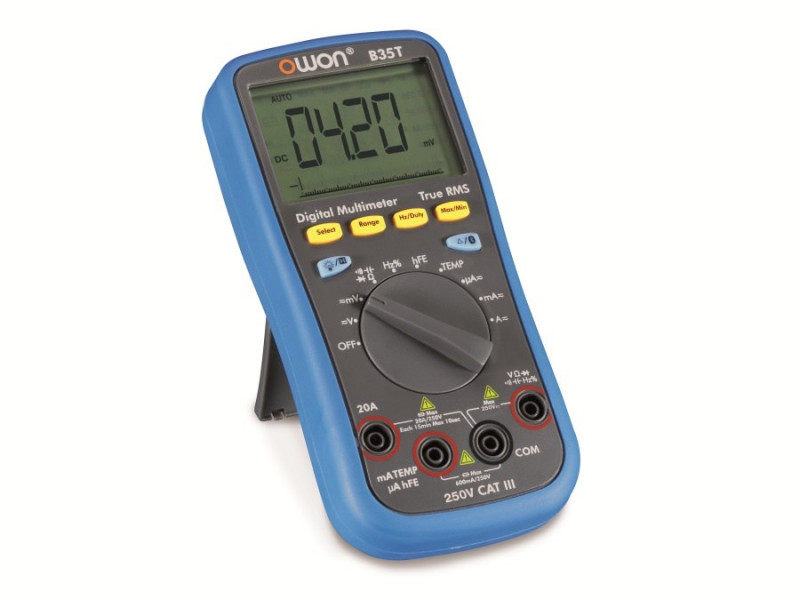

OWON B35T+ Digital Multimeter (1000V, 20A)

Name: OWON B35T+ Digital Multimeter (1000V, 20A)
Brand: OWON

ManufacturerOWON(View more products from this manufacturer)

ModelB35T+

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

True RMS
Bluetooth
DC Voltage: 60.00mV/600.0mV/6.000V/60.00V/600.0V/1000V
AC Voltage: 60.00mV/600.0mV/6.000V/60.00V/600.0V/1000V
DC Current: 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20A
AC Current: 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20A
Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/10.00MΩ/60MΩ
C: 400.0nF/4.000μF/40.00μF/ 4000μF
F: 10Mhz
Temperature: -50℃~+400℃/ -58°F~+752°F
Display: 6000 count
Resolution: 0.01mV/0.01mA
Accruacy: 0.8%
Offline recording function: (only in B35+, and B35T+)

Manual

Model		D35	D35T	B35	B35T	B35+	B35T+
		Measurement Range				Resolution	Accruacy
DC Voltage	mV	60.00mV/600.0mV				0.01mV	±(0.5%+2dig)
	V	60.00mV/600.0mV/6.000V/60.00V				0.1mV
		600.0V/1000V				0.1V
AC Voltage	mV	60.00mV/600.0mV				0.01mV	±(0.8%+2dig)
	V	60.00mV/600.0mV/6.000V/60.00V				1mV	±(0.8%+2dig)
		600.0V/750V				0.1V	±(1%+3dig)
DC Current	μA	600.0μA				0.1μA	±(0.8%+2dig)
	mA	600.0μA/6.000mA/60.00mA/600.0mA/6.000A				0.01mA	±(0.8%+2dig)
	A	20.00A				1mA	±(1.2%+3dig)
AC Current	μA	600.0μA				0.1μA	±(1%+3dig)
	mA	600.0μA/6.000mA/60.00mA/600.0mA/6.000A				0.01mA	±(0.8%+2dig)
	A	20.00A				1mA	±(2%+3dig)
Resistance		600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/10.00MΩ				0.1Ω	±(0.8%+2dig)
		60.00MΩ				0.01MΩ	±(2%+3dig)
Capacitance		40.00nF				0.01nF	±(2.5%+3dig)
		400.0nF/4.000μF/40.00μF				0.1nF	±(2.5%+3dig)
		400.0μF/4000μF				0.1μF	±(3%+5dig)
Frequency		9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/ 9.999MHz				1mHz	±(0.8%+2dig)
Duty Ratio		0.1%~99.9%（typical value: Vrms=1V, f=1kHz）				0.1%	±(1.2%+3dig)
		0.1% ~99.9%（≥1kHz）					±(2.5%+2dig)
Temperature		-50℃~+400℃				1°C	±(2.5%+3dig)
		-58°F~+752°F				1°F	±(4.5%+5dig)
Display		6000 count
Frequency		(40-400)Hz
Shift Rate on DMM		3 times / s
Shift Rate on App		2 times / s
Simulated Chart Shift Rate on DMM		30 times / s

Bluetooth Module	√ (only in B35, B35T, B35+, and B35T+)	True RMS	√ (only in B35T, B35T+, and D35T)
Auto-scale	√	LCD Backlight	√
Max / Min Value	√	Simulated Chart	√
Diode Test	√	offline recording function	√ (only in B35+, and B35T+)
Audion Test	√	Input Protection	√
Auto Power-off	√	Input Impedance	10MΩ
On-off Warning	√	LCD Size	69 x 52 mm
Low-battery Indicator	√	Display Area	67 x 46 mm(effective area 66 x 45 mm)
Data Hold	√	Battery	3V (1.5V x 2)
Relative Measurement	√	Weight(without package)	0.32 kg
