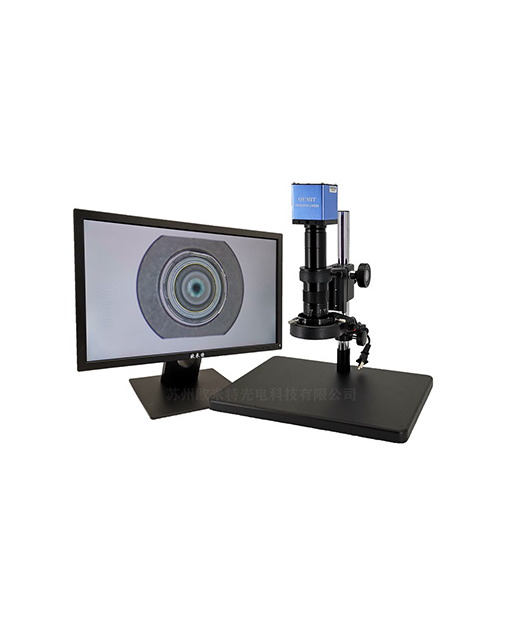

OUMIT OMT-1800HC HD Measurement Video Microscope

Optical system OMT-10A

Zoom ratio: 1:6.4

Zoom range: 0.7 times --- 4.5 times

Main objective: 1x

Line drawing: Yes, crosshairs, tick marks

Photograph: Yes, USB storage

Measurement: have

Video: have

Contour contrast: Optional

Scan the QR code: Optional

Network port: Optional

Depth of Field Fusion: Optional

Image magnification: 20 times --- 135 times

Optional image magnification: 10 times --- 270 times

CCD interface: 0.5 times

Working distance: 100mm

Center distance: 135mm

Field of view:  Largest field of view 25mm*14mm --- * Smallest field of view 3.6mm*2.0mm

CCD Imaging System OMT-918M

Interface: HDMI

Resolution: 1920 x 1080

Pixel size: 3.75μm x 3.75μm

Target size: 1/2

Number of data bits: 12BIT

Exposure method: Progressive exposure

Output frame rate: 65FPS

Output Color: color

Bracket system

Focusing lens frame: Coarse focus hand wheel, the focus hand wheel is adjustable in tightness, and the lifting range is 50mm

Column type stand: φ32*320（mm）

Work Platform: Size 320×260×16mm Black metal

Lighting system OMT-60C

External light source: LED ring light, input voltage: AV100~240V wide voltage, brightness continuously adjustable

Display section

Monitor: 22-inch HD 1080P display
