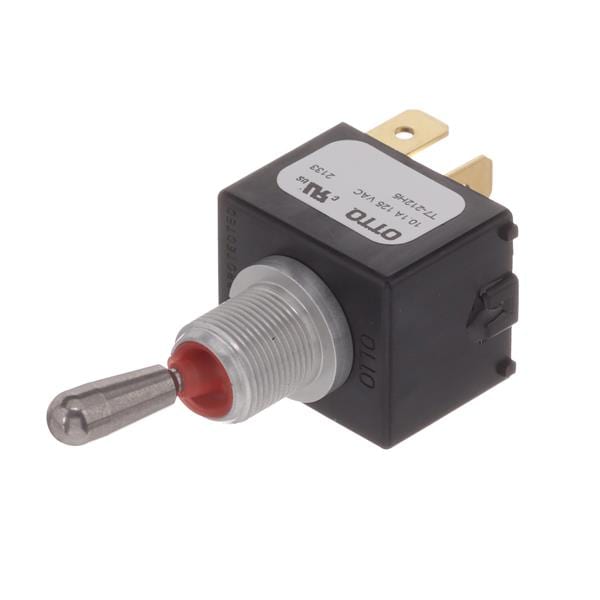

OTTO T7-212H5 Toggle Switches OFF NONE ON 2 Pole Low-Level Bat Handle

Life: 50000 Cycle

Actuator: Bat

IP Rating: IP68S, IP69K

Compliance: UL

Illuminated: Non-Illuminated

Unit Weight: 37 g

Bushing Size: 15/32-32

Contact Form: DPST

REACH - SVHC: Details

Mounting Type: Bushing

Terminal Seal: Sealed

Actuator Style: Bat

Current Rating: 7 A, 10 A, 16 A

Mounting Style: Panel Mount

Contact Plating: Gold

Number of Poles: 2 Pole

Switch Function: OFF - NONE - ON

Actuator Material: Stainless Steel

Termination Style: Quick Connect

Voltage Rating AC: 125 VAC

Voltage Rating DC: 28 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
