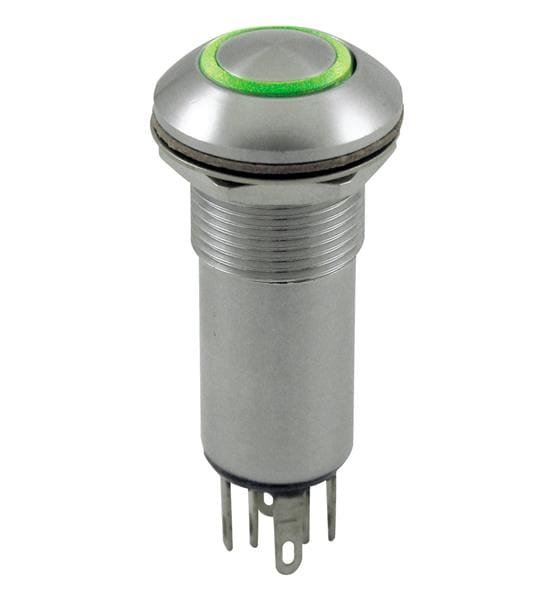

OTTO LP5-A13B312 Anti-Vandal Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

Life: 25000 Cycle

Color: Silver

Height: 42.164 mm

Actuator: Round

Diameter: 14.3 mm

Cap Color: Silver

IP Rating: IP68S

Lamp Type: LED

Illuminated: Illuminated

Unit Weight: 22.518 g

Contact Form: SPST

REACH - SVHC: Details

Actuator Style: Button, Curved

Current Rating: 5 A

Mounting Style: Panel Mount

Actuator Length: 22 mm

Contact Plating: Gold

Switch Function: OFF - ON

Housing Material: Aluminum Alloy

Actuator Material: Aluminum Alloy, Thermoplastic (TP)

Termination Style: Quick Connect

Voltage Rating AC: 115 VAC

Voltage Rating DC: 28 VDC

Illumination Color: Green

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
