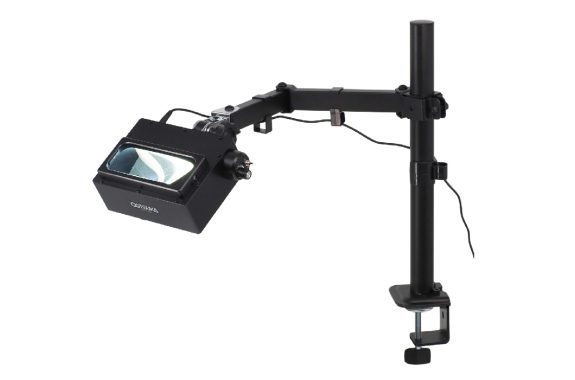

Otsuka SL120SA LED coaxial illumination magnifier (2x)

Type: Swing arm type (clamp mounted)

Lens:

Line Up: Magnification is 2x only and it has an AR coating to reduce glare, which is a concern.

Lens dimensions: Effective diameter130mm×50mm

Illumination:

Light Source: White LED

Rated power consumption: 16W

AC adapter type: UNIFIVE336-2415(24V/1.5) Weight: 270g

AC adapter input voltage: AC100V～240V 50/60Hz

AC adapter shape: A plug

AC adapter cord length: 1800m

Dimming function: Yes (100 to 0%)

Main body:

Dustproof and waterproof protection class: IP30 (for indoor use only)

Operating temperature range: ０℃～３５℃

Pole Height(mm) / Arm length(mm): 410/380

Weight: 2.2Kg（Body only）

Clamping width (mm): 15-45 (board thickness)

The SA type is a product to be fixed to a desk.

It is resistant to vibration and can be installed stably.

It can also be used as a simple free arm.

The magnifier has finally been converted to coaxial illumination, combining the features of the illuminated magnifier and coaxial illumination.

The coaxial illumination can illuminate the object under observation from the same direction as the optical axis of the lens, making it possible to visualize the unevenness of the object under observation.

The magnification can be switched between 2X and 4X, and AR coating is applied to reduce annoying glare.

The rectangular shape of the lens is similar to the human field of view, allowing both eyes to see the observed object in three dimensions
