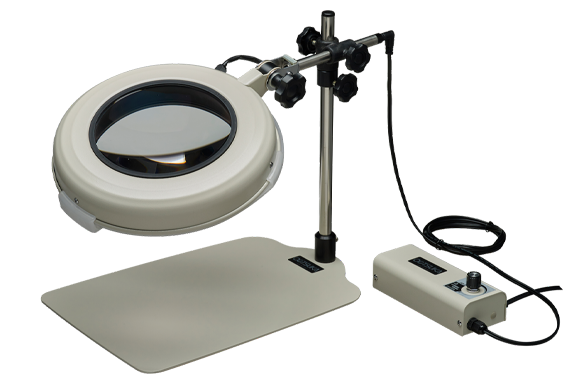

Otsuka LSK WIDE-B LED Illuminated mangifire

Type:Table stand illuminated magnifier

Lens:

Magnification Lineup: AR WIDE 2x, AR WIDE 3x,  AR WIDE 4x ( anti-reflection coating )

Lighting:

Light source: High color rendering white LED （Ra≧90）+ diffusion cover

Input voltage: 100～240V, 50/60Hz, plug type A

* It is possible to use up to 125 ～ 240V by changing the cord with attached AC plug. For more information, please contact your dealer.

Power consumption: 11W

continuous dimming: Available/100 ～ 50%

Body:

Weight (Kg): 3.6 (Body weight without lens)

Total Height (mm): 321

Head Dimensions (mm): ɸ263

Base Dimensions (mm): 242 × 368

Power Supply Box Dimensions (mm): 160×65×44 (PS15C)

Vertical Post/Horizontal Bar (Diameter/mm): ɸ16/ɸ13

Operating Temperature Range: 5℃～35℃

Dustproof and waterproof protection grade: IP20 (Indoor use only)

LSK WIDE-B is the most standard form illuminated magnifier used on workbenches and other surfaces.

150φ large aperture lens with AR (anti-reflection) coating as standard.

The light source features a chip-on-board LED and has the same luminous intensity distribution

as a 30W fluorescent light tube thanks to its flat diffusion cover.

Continuous dimming between 100% and 50%.
