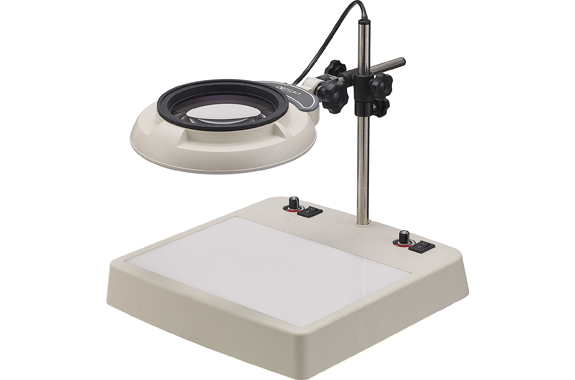

Otsuka ENVL-CL LED Illuminated mangifire (2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x)

Type: lightbox-type illuminated magnifier

Lens:

Magnifier Magnification Lineup: 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x

AR (anti-reflection) Coated Lineup: Available / 2x, 3x, 4x, 6x, 8x, 10x

Lighting:

Light source: Epi-illumination side LED : High Color Quality White LED (CRI≧90) with Protective cover for diffusion.

Transparent illumination side LED : White LED (CRI≧80) with Protective cover for diffusion.

Input voltage: 100～240V : 50/60 Hz : Plug Type A

* It is possible to use up to 125～240V by changing the cord with attached AC plug. For more information, please contact your dealer.

Power consumption: 18W

Dimming Function: Available / 100 ～ 50% Each epi-illumination/transillumination can be turned on or adjusted individually.

Body:

Weight (Kg): 3.2 (without lens / body weight)

Vertical /Horizontal  Bar (diameter/mm): ɸ16/ɸ13

Operating temperature range: 5℃～35℃

Dustproof and waterproof protection grade: IP30 (indoor use only)

The ENVL-CL model is a product with two lightings: epi-illumination around the lens and transillumination on the box. The two lightings can be turned on/off individually.

The newly designed, LED-exclusive slim head uses a board-mounted LED with high color rendering (Ra≧90) and heat generation.

A flat, diffuser and protector will reduce the work and the light source as well as the glare unique to LEDs.

Epi-illumination can be used for external inspection, and transillumination can be used in to inspect the translucency of an object, its external parts, or fish-eye cameras as well as confirm the linings of a perforating hole.
