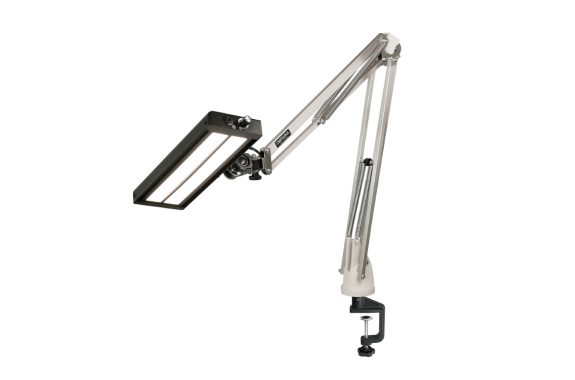

Otsuka EL270F OLED inspection lighting (13W)

Type: table clamp type.

Illumination:

Light source: OLED lighting panel

Input rated input voltage: 100～240V・50/60Hz・A plug; it can be used from 125 to 240V,By changing the cord with AC plug.

Rated power consumption: 13W

Dimming function: Yes（100％〜10％）

Illuminance directly under the center (Max): 2170LX/150mm 710LX/300mm 290LX/500mm  (measured by our measurement method)

Illuminance directly under the center (Min):  160LX/150mm 50LX/300mm 20LX/500mm  (measured by our measurement method)

Color temperature: 4000K( white )

Average color rendering index （Ra）: 90

Luminous surface size (mm): L273×W30

Total luminous flux （lm）: 200　(パネル1枚あたり）

AC adapter model, rating: UNIFIVE336-2415(24V/1.5) weigh：270ｇ

Main Body:

Weight(Kg): 2.6 (Main body weight))

Dustproof/waterproof protection class: P20 (for indoor use only)

Clampable width (mm): 10-60 (board thickness)
