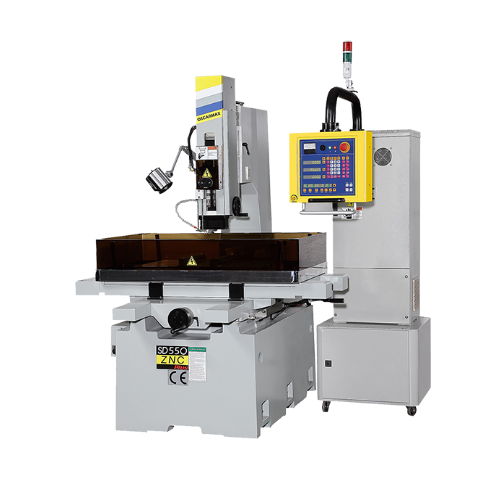

OscarMax SD550 ZNC Plus Micro Drill Electrical Discharge Machine (1075 x 540 mm, 4.6KVA)
ManufacturerOscarMax(View more products from this manufacturer)
ModelSD550 ZNC Plus
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table Travel (X): 550 mm
Table Travel (Y): 400 mm
Servo Travel (W): 345 mm
Guide Travel: 200 mm
Manual Guide Travel: 150 mm
Max. Workpiece Dimensions (WxD): 1075 x 540 mm
Guide (30mm) to Work Table: 45-395 mm
Max. Workpiece Weight: 1000 kg
Table Size (WxD): 800 x 450 mm
Machine Weight: 1950 kg
Generator
Max. Working Current:50A
Overall Power Consumption:4.6KVA
Weight:250kg
Dielectric
Tank Capacity:60L
Filter Density:10μm
Filter Elements: 2 pc
