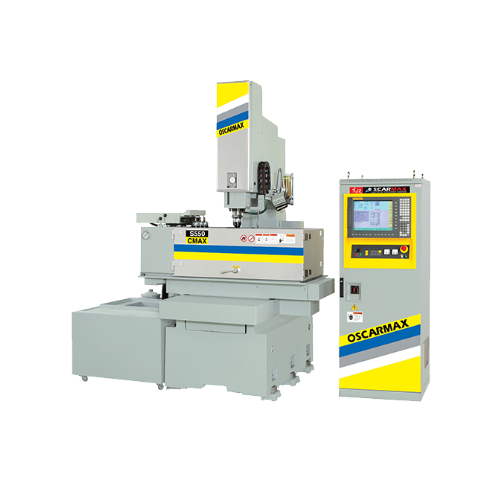

OscarMax S550 CMAX Die Sinker Electrical Discharge Machine (1100 x 630 mm, 6KVA)

Table Travel (X): 500 mm

Table Travel (Y): 400 mm

Table Travel (Z): 350 mm

Max. Workpiece Dimensions (WxD): 1100 x 630 mm

Max. Filling Height of Dielectric Tank: 260 mm

Distance Between Chuck to Table: 135 - 485 mm

Max. Workpiece Weight: 1350 kg

Max. Electrode Weight: 220 kg

Table Size (WxD): 800 x 450 mm

Machine Weight: 1950 kg

Generator

Max. Working Current:60A

Overall Power Consumption:6KVA

Weight:320kg

Dielectric

Tank Capacity:520L

Filter Density:20μm

Filter Elements: 3 pcs
