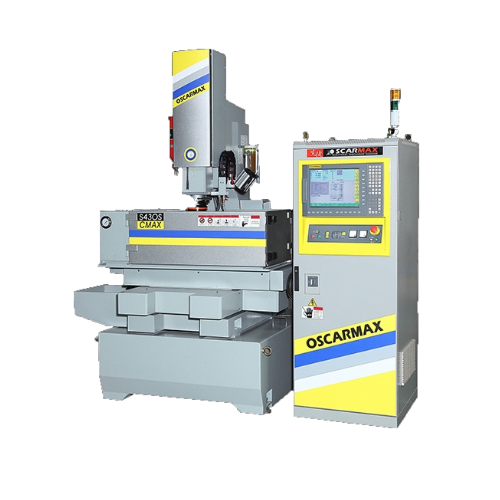

OscarMax S500 CMAX Die Sinker Electrical Discharge Machine (1020 x 710 mm, 10KVA)

Specification

Table Travel (X): 500 mm

Table Travel (Y): 400 mm

Table Travel (Z): 350 mm

Max. Workpiece Dimensions (WxD): 1020 x 710 mm

Max. Filling Height of Dielectric Tank: 355 mm

Distance Between Chuck to Table: 130 - 480 mm

Max. Workpiece Weight: 2300 kg

Max. Electrode Weight: 200 kg

Table Size (WxD): 850 x 450 mm

Machine Weight: 3000 kg

Generator

Max. Working Current:90A

Overall Power Consumption:10KVA

Weight: 350kg

Dielectric

Tank Capacity:850L

Filter Density:20μm

Filter Elements: 6 pcs
