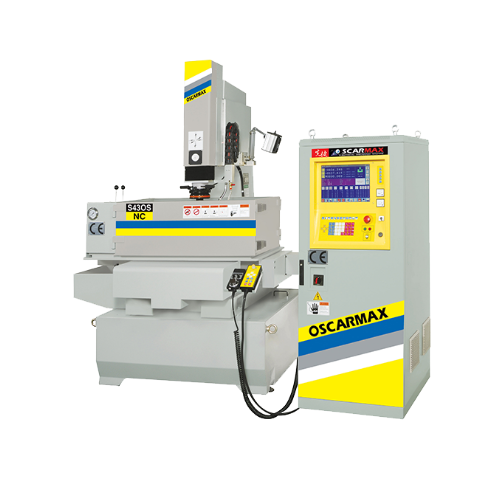

OscarMax S430S NC Die Sinker Electrical Discharge Machine (945 x 510 mm, 6KVA)

Table Travel (X DM/SM): 400 mm

Table Travel (Y): 300 mm

Servo Travel (Z): 180 mm

Servo Travel (Z2): 250 mm

Max. Workpiece Dimensions (WxD): 945 x 510 mm

Max. Filling Height of Dielectric Tank: 215 mm

Distance Between Chuck to Table: 20 - 450 mm

Max. Workpiece Weight: 550 kg

Max. Electrode Weight: 120 kg

Table Size (WxD): 650 x 350 mm

Machine Weight: 1200 kg

Generator

Max. Working Current: 60A

Overall Power Consumption:6KVA

Weight: 320kg

Dielectric

Tank Capacity:380 L

Filter Density:20μm

Filter Elements: 3 pc
