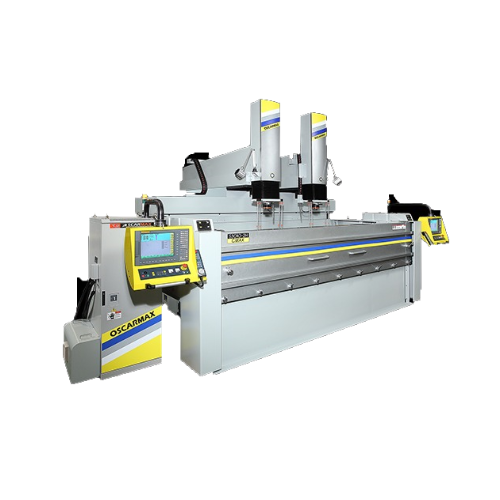

OscarMax S2210-2H CMAX Die Sinker Electrical Discharge Machine (2890 x 1590 mm, 12KVA)
ManufacturerOscarMax(View more products from this manufacturer)
ModelS2210-2H CMAX
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table Travel (X DM/SM): 755 / 1550 mm
Table Travel (Y): 1000 mm
Servo Travel (Z): 600 mm
Max. Workpiece Dimensions (WxD): 2890 x 1590 mm
Max. Filling Height of Dielectric Tank: 585 mm
Distance Between Chuck to Table: 575 - 1175 mm
Max. Workpiece Weight: 10000 kg
Max. Electrode Weight: 500 kg
Table Size (WxD): 2250 x 1100 mm
Machine Weight: 15000 kg
Generator
Max. Working Current:120A
Overall Power Consumption:12KVA
Weight: 380kg
Dielectric
Tank Capacity:4655 L
Filter Density:20μm
Filter Elements: 12 pcs
