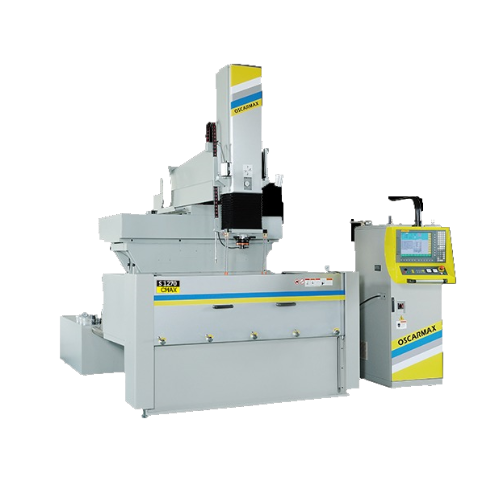

OscarMax S1270 CMAX Die Sinker Electrical Discharge Machine (1860 x 1120 mm, 12KVA)

Table Travel (X): 1200 mm

Table Travel (Y): 700 mm

Table Travel (Z): 500 mm

Max. Workpiece Dimensions (WxD): 1860 x 1120 mm

Max. Filling Height of Dielectric Tank: 460 mm

Distance Between Chuck to Table: 395 - 895 mm

Max. Workpiece Weight: 5000 kg

Max. Electrode Weight: 400 kg

Table Size (WxD): 1350 x 820 mm

Machine Weight: 6500 kg

Generator

Max. Working Current:120A

Overall Power Consumption:12KVA

Weight: 380kg

Dielectric

Tank Capacity:1875 L

Filter Density:20μm

Filter Elements: 6 pcs
