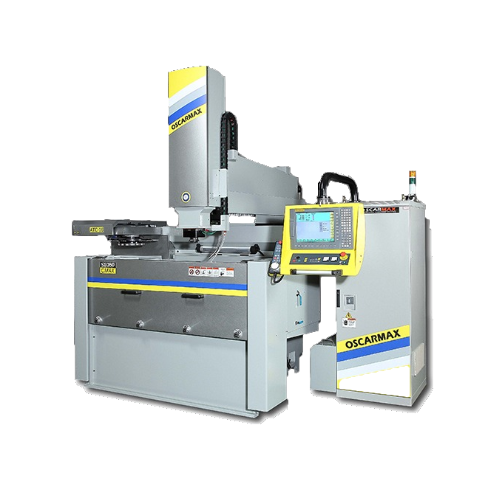

OscarMax S1060 CMAX Die Sinker Electrical Discharge Machine (1670 x 990 mm, 12KVA)
ManufacturerOscarMax(View more products from this manufacturer)
ModelS1060 CMAX
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table Travel (X): 1000 mm
Table Travel (Y): 600 mm
Table Travel (Z): 500 mm
Max. Workpiece Dimensions (WxD): 1670 x 990 mm
Max. Filling Height of Dielectric Tank: 460 mm
Distance Between Chuck to Table: 260 - 760 mm
Max. Workpiece Weight: 4500 kg
Max. Electrode Weight: 350 kg
Table Size (WxD): 1250 x 750 mm
Machine Weight: 5500 kg
Generator
Max. Working Current:120A
Overall Power Consumption:12KVA
Weight:380kg
Dielectric
Tank Capacity:1610L
Filter Density:20μm
Filter Elements: 6 pcs
