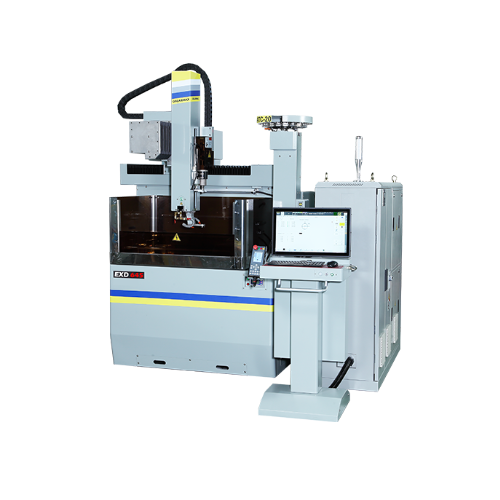

OscarMax EXD645 Micro Drill Electrical Discharge Machine (870 x 750 mm, 4.6KVA)
ManufacturerOscarMax(View more products from this manufacturer)
ModelEXD645
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table Travel (X): 600 mm
Table Travel (Y): 400 mm
Servo Travel (W): 500 mm
Guide Travel: 500 mm
Max. Workpiece Dimensions (WxD): 870 x 750 mm
Guide (30mm) to Work Table: 25-525 mm
Max. Workpiece Weight: 690 kg
Table Size (WxD): 650 x 450 mm
Machine Weight: 2000 kg
Generator
Max. Working Current:50A
Overall Power Consumption:4.6KVA
Weight: 370kg
Dielectric
Tank Capacity:60 L
Filter Density:10μm
Filter Elements: 1 pc
