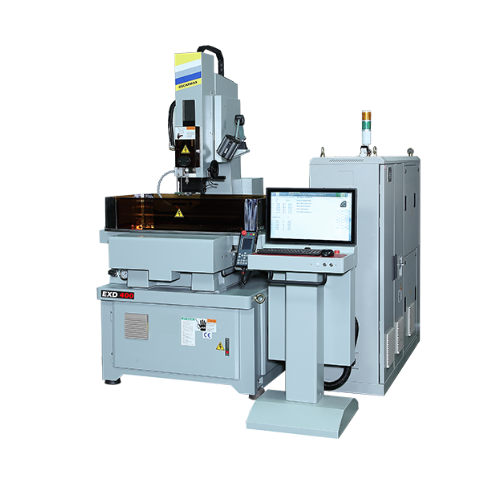

OscarMax EXD400 Micro Drill Electrical Discharge Machine (990 x 460 mm, 10KVA)
ManufacturerOscarMax(View more products from this manufacturer)
ModelEXD400
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table Travel (X): 400 mm
Table Travel (Y): 300 mm
Servo Travel (W): 345 mm
Guide travel: 200 mm
Manual Guide travel: 150 mm
Max. Workpiece Dimensions (WxD): 990 x 460 mm
Guide (30mm) to Work Table: 5-355 mm
Max. Workpiece Weight: 450 kg
Table Size (WxD): 600 x 300 mm
Machine Weight: 1200 kg
Generator
Max. Working Current:120A
Overall Power Consumption:10KVA
Weight: 370kg
Dielectric
Tank Capacity:120 L
Filter Density:10μm
Filter Elements: 1 pc
