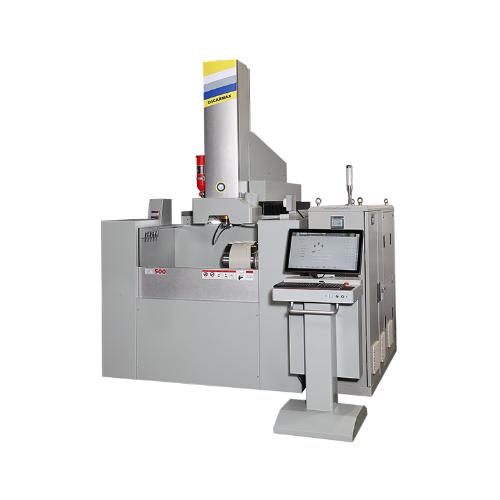

OscarMax EX 500 Die Sinker Electrical Discharge Machine (1020 x 710 mm, 10KVA)
ManufacturerOscarMax(View more products from this manufacturer)
ModelEX 500
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Table Travel (X): 500 mm
Table Travel (Y): 400 mm
Table Travel (Z): 350 mm
Max. Workpiece Dimensions (WxD): 1020 x 710 mm
Max. Filling Height of Dielectric Tank: 355 mm
Distance Between Chuck to Table: 130 - 480 mm
Max. Workpiece Weight: 2300 kg
Max. Electrode Weight: 200 kg
Table Size (WxD): 850 x 450 mm
Machine Weight: 3000 kg
Generator
Max. Working Current:90A
Overall Power Consumption:10KVA
Weight: 350kg
Dielectric
Tank Capacity:850L
Filter Density:20μm
Filter Elements: 6 pcs
