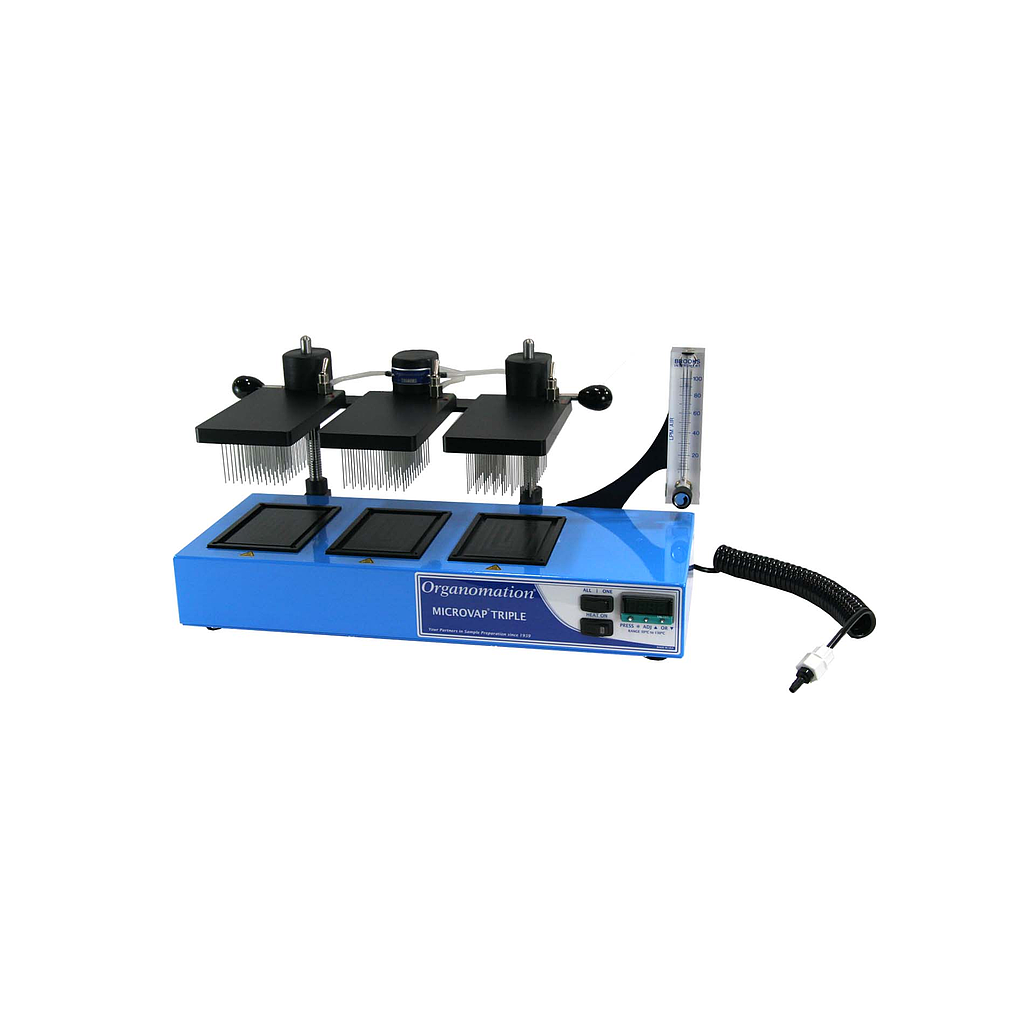

Organomation Triple Plate MICROVAP Nitrogen Evaporator (Dry Block; 61 x 22.9 x 35.6 cm; 3 sample plates)

Heater Type: Dry Block

Overall Dimensions (W x D x H): 61 x 22.9 x 35.6 cm

Number of Sample Plates: 3

Microplate Dimensions (W x D): 8.5 x 13 cm

Center to Center Spacing Between Positions: 9 mm

Gas Manifold Layout: Triple 8 x 12 Array

Gas Flow Meter: 0-100 LPM

Stainless Steel Needles Length and Gauge: 51 mm x 19 ga

Hoist Assembly: Spring Assisted Hoist Assembly

Built-in Gas Regulator Input: 30 psi

Heating Device Specifications

Model Number: 54243

Outside Dimensions (W x D x H): 24 x 9.5 x 3 in, 61 x 22.9 x 7.6 cm

Total Wattage: 540 W

Temperature Range: 40-130 °C

Temperature Controller Type and Controller Accuracy: Digital +/- 2°C
