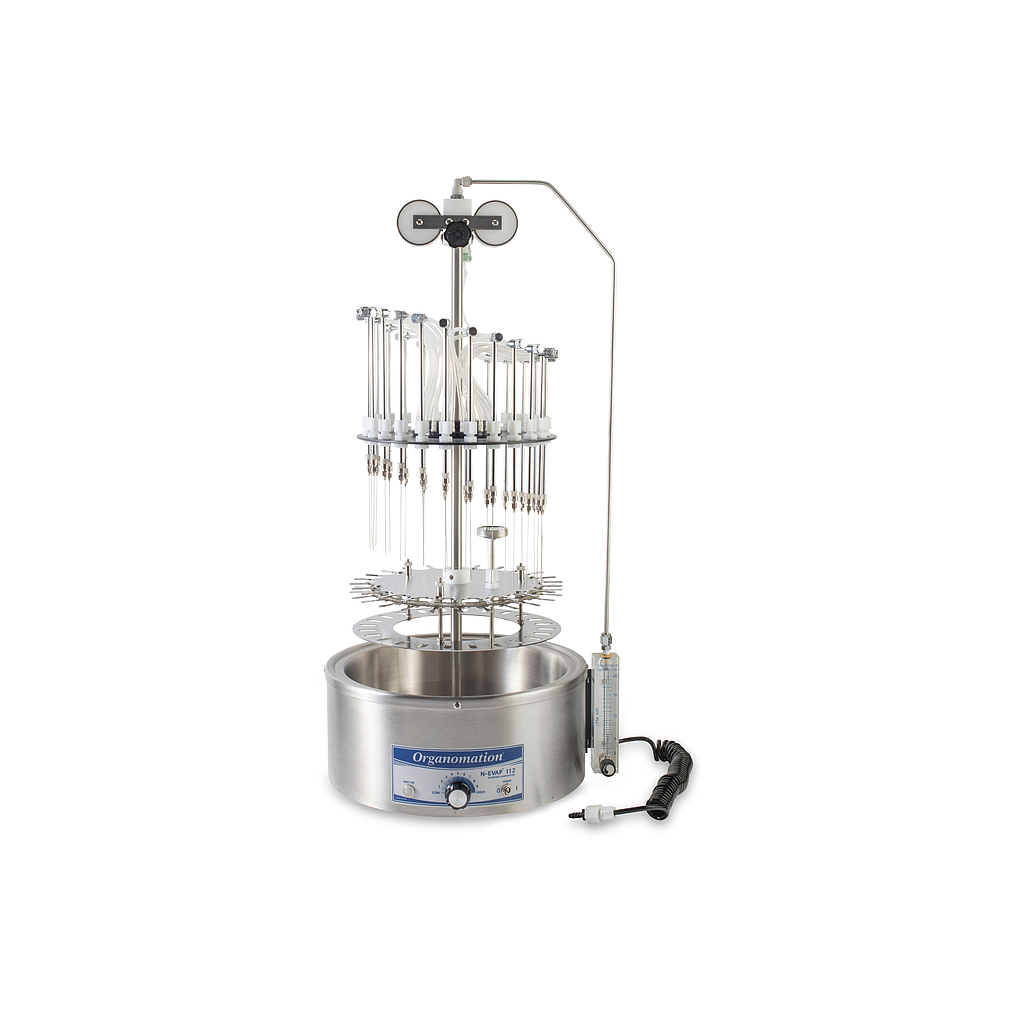

Organomation Teflon-Free 24p N-EVAP Nitrogen Evaporator (24 sample positions; water bath; 41 x 38 x 61 cm)

Bath Type: Water

Number of Sample Positions: 24

Standard Dimensions (w x d x h): 41 x 38 x 61 cm

Reduced Height Dimensions (w x d x h): 41 x 38 x 61 cm

Sample Holder Layout: Circular

Gas Manifold Layout: Single Ring

Test Tube Range (Standard): 10-30 mm OD

Test Tube Range (Optional): 30-70 mm OD

Gas Flow Meter: 0-20 L/min

Stainless Steel Needles (Length x Gauge): 102 mm x 19 ga

Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly

Standard Gas Input Range: 20-30 psig

Gas Input Range w/Optional Pressure Reducing Regulator: 30-160 psig

Heating Device Specs

Model Number: 9125

Heating Medium: Water

Inside Dimensions (Diameter x Depth): 30.5 x 11.4 cm

Outside Dimensions (w x d x h): 41 x 38 x 18 cm

Total Wattage: 900 W

Bath Temperature Range: 30-90 °C

Temperature Controller Type: Mechanical Thermostat

Controller Accuracy: +/- 2 °C
