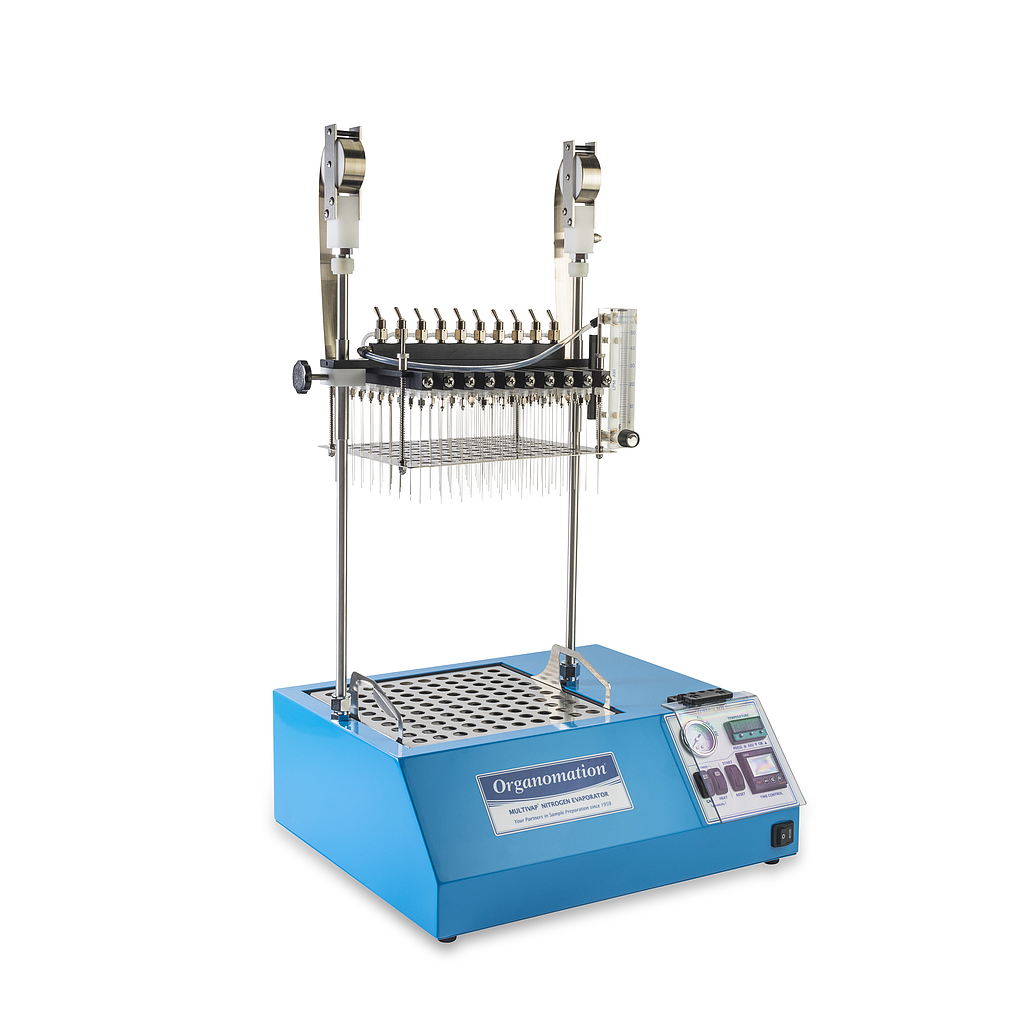

Organomation Teflon-Free 100p MULTIVAP Nitrogen Evaporator (100 sample positions; water bath; 48 x 43 x 86 cm)

Bath Type: Water

Number of Sample Positions: 100

Standard Dimensions (w x d x h): 48 x 43 x 86 cm

Sample Holder Layout: Square

Gas Manifold Layout: 10 x 10 array

Center to Center Spacing Between Positions: 2.54 cm

Test Tube Diameter: 11-22 mm OD

Gas Flow Control On/Off Valve: Every row of 10

Gas Flow Meter Range: 0-50 L/min

Stainless Steel Needles (Length x Gauge): 102 mm x 19 ga

Needle Guide: Standard

Hoist Assembly: Dual Pulley & Band Springs

Built-in Gas Regulator Input: 30-110 psig

Heating Device Specs

Model Number: 11196

Inside Dimensions (Diameter x Depth): 28 x 28 x 14 cm

Outside Dimensions (w x d x h): 48 x 43 x 18 cm

Total Wattage: 1100 W

Bath Temperature Range: 30-110 °C

Temperature Controller Type: Digital Electronic with LED Display

Controller Accuracy: +/- 2 °C
