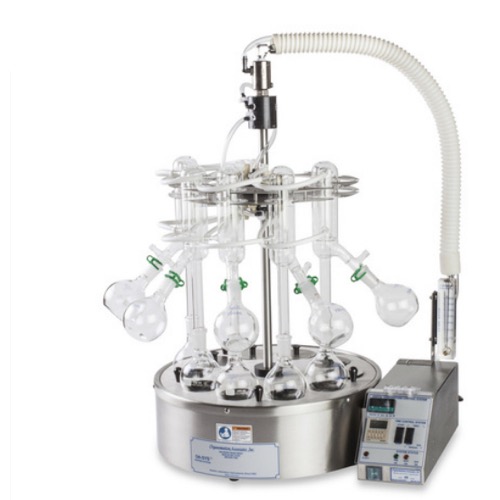

Organomation S-EVAP+ Vacuum Evaporator (4 samples; 66 x 61 x 76 cm)

Number of Samples: 4

Application: Round Flasks/Shallow Bath

Overall Dimensions (W x D x H): 66 x 61 x 76 cm

Glassware Specifications

Glassware: GS2165

Solvent Flask Type and Size: Round with Flat Bottom; 2L

Condenser Type and Size: Inverted Hopkins with 24/40 sidream

Collection Flask Type and Size: Round with Flat Bottom; 2L

Heating Device Specifications

Water Bath Model Number: 16165

Water Bath Size: 16 inch ID

Inside Bath Dimensions (Diameter x Depth): 40.6 x 11.4 cm

Outside Bath Dimensions (W x D x H): 61 x 48 x 15 cm

Total Wattage: 1400 W - 240V

Bath Temperature Range: 30-100 °C

Temperature Controller Type and Controller Accuracy: Digital Electronic with LED Display +/- 2 °C

*Images for illustrative purposes only.

Datasheet
