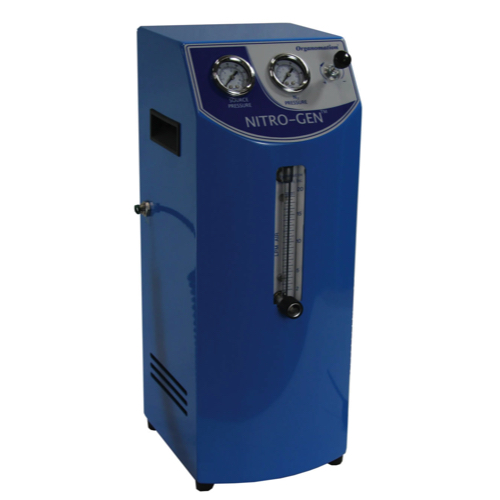

Organomation NITRO-GEN Nitrogen Generator (20 L/min)

Flow Rate: Up to 20 L/min

Technology: Hollow-Fiber Membrane

Output Pressure: Adjustable 0 - 100 psi

Electrical Requirements: None

Total Wattage: N/A

Noise Level: Negligible (< 40 dBA when connected to an instrument)

Overall Dimensions (w x d x h): 24.1 x 20.3 x 49.5 cm

Weight: 6 kg

Inlet Air Conditions

Max Inlet Pressure: 150 psi/ 10.3 bar

Particulates: ≤ 0.01 µm

Max Oil Vapor Content: < 0.01 mg/m3; < 0.01 ppm (w)

Relative Humidity: < 100% (non-condensing)

Heating Device Specs

Temperature: 36-122 °F/ 2-50 °C

Ambient Pressure: Atmospheric

Air Quality: Clean air without contaminants
