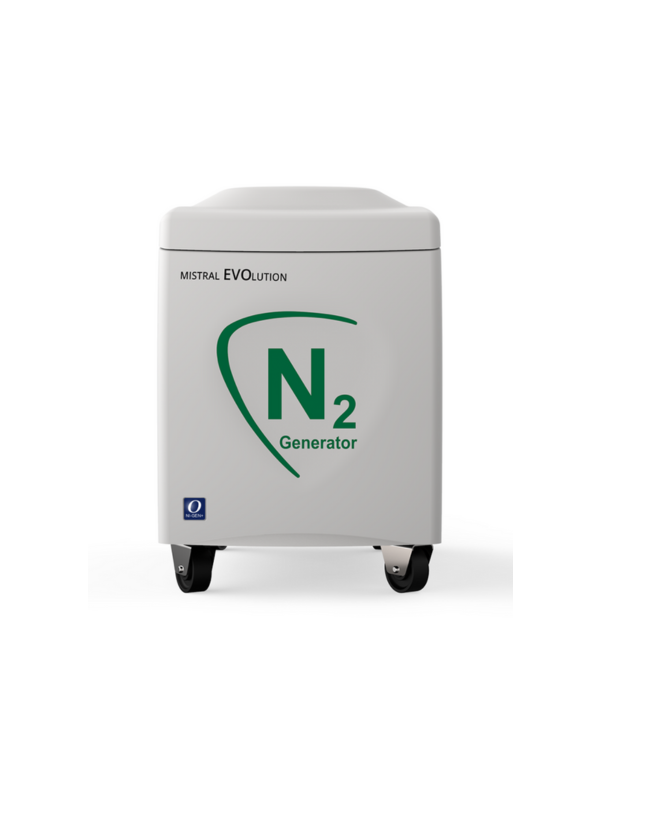

Organomation NITRO-GEN+ Nitrogen Generator (35 L/min)

Flow Rate: Up to 35 L/min

Nitrogen Purity:

Up to 99% purity at a flow rate of ≤ 25 L/min

Up to 98% purity at a flow rate of >25 L/min

Dewpoint: -58 °F; -50 °C

Technology: Carbon molecular sieve (CMS)

Warm Up Time: 20 minutes

Output Pressure: 0 - 116 psi; 0 - 8 bar

Electrical Requirements: 110-120 V, 60 Hz / 220-240 V, 50 Hz

Total Wattage: 1800 W

Index of Protection: IP20

Mechanical Impact Rating: IK08

Noise Level: 55 dBA at 1 meter

Overall Dimensions (w x d x h): 48 x 83.8 x 63.5 cm

Weight: 90 kg

Outlet Connection: 6 mm OD compression or 1/4"

Environmental Operating Conditions

Operating Temperature: 59-95 °F/ 15-35 °C

Relative Humidity:

0-80% rF with no condenser

0-99% rF with condense drain

Altitude: <2,000 m (from 800 to 1,150 hPa)
