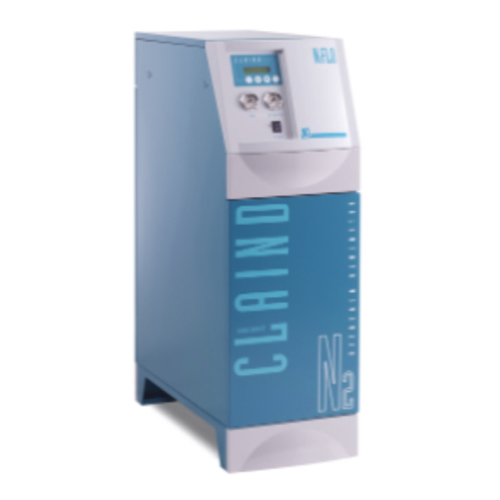

Organomation N2 FLO 1 Nitrogen Generator (3 L/min~46 L/min)

Outgoing Nitrogen Flow at 8.5 bar, CMS 20°C

99.999%: 3 L/min

99.99%: 6 L/min

99.9%: 15 L/min

99.5%: 25 L/min

99%: 33 L/min

98%: 40 L/min

97%: 46 L/min

Technology Employed: Claind's Pressure Swing Adsorption (PSA) Fast Purity Process

Inlet Air Specifications:

Min Air Pressure 6.5 bar

Max Air Pressure: 13 bar

Quality: dry, clean, exhalation free

Must meet ISO 8573-1 Class 1.4.1 specifications

Nitrogen Outlet Pressure: 1.5 bar lower than the inlet pressure

Moisture: -50°C dew point ATP

Electrical Supply: 115 V +/- 10% 60 Hz; 230 V +/- 10% 50 Hz

Power Rating: 50W

Protection Index: IP20

Noise: ≤ 60 dB (at 1 m from generator)

Operating Temperature : 5 ÷ 40°C

Dimensions: Height: 46.5" (118cm); Width: 15.7" (40cm); Depth: 31.5" (80cm)

Weight: 203lbs (92 kg)

DESCRIPTION

The N2 FLO comes with a purity analyzer and pressure regulator to allow for real-time monitoring of the nitrogen purity. It has a nitrogen storage tank for ease of use, allowing you to avoid the buffer tank. It features a digital control system that can be interfaced with external systems. If the nitrogen used is less than the amount produced, the generator automatically goes into energy-saving stand-by mode. A humidity and oil particle analyzer mounted on the suction line prevents impurities from passing through, protecting the operation of the generator and quality of the gas produced. E941 food purity option allows for different calibrations in order to meet specific customer needs.
