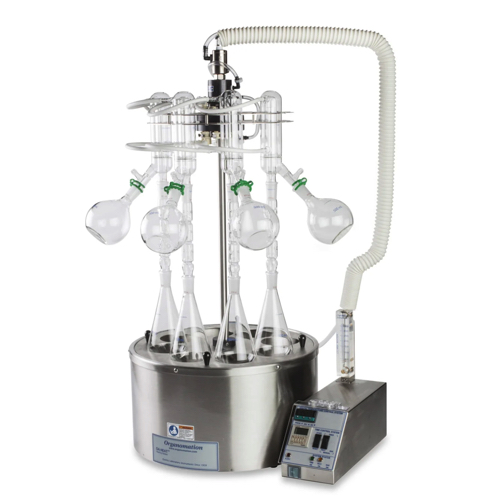

Organomation 8 Position S-EVAP-KD Solvent Evaporator (8 samples; 66 x 61 x 99 cm; 61 x 48 x 99 cm)

Number of Samples: 8

Application: Kuderna-Danish Flasks/Deep Bath

Individual Solvent Collection Specifications

Overall Dimensions: 66 x 61 x 99 cm

Glassware 500 mL: GS2153

Sample Flask Type and Size: Kuderna-Danish; 19/22, 24/40

Concentrator Tube Type and Size: Insulated Tip; 10 mL, 19/22

Snyder Column Type and Size: Three Ball; 253 mm, 24/40

Condenser Type and Size: Inverted Hopkins; 260 mm, 24/40

Collection Flask Type and Size: Round with Flat Bottom; 500 mL

Central Solvent Collection Specifications

Overall Dimensions (W x D x H): 61 x 48 x 99 cm

Glassware 500 mL: GS2153-C

Sample Flask Type and Size: Kuderna-Danish; 19/22, 24/40

Concentrator Tube Type and Size: Insulated Tip; 10 mL, 19/22

Snyder Column Type and Size: Three Ball; 253 mm, 24/40

Condenser Type and Size: Inverted Hopkins; 260 mm, 24/40; ¼ in Tube Fitting

Central Collection Flask Type and Size: 8 Port; Round 4.0 L

Central Collection Flask Catalog Number: GS2158-C8

Heating Device Specifications

Bath Model Number: 14165 - 240V

Inside Dimensions (Diameter x Depth): 40.6 x 21.6 cm

Outside Dimensions (W x D x H): 61 x 48 x 25 cm

Total Wattage: 1400 W - 240V

Bath Temperature Range: 30-100 °C

Temperature Controller Type and Controller

Accuracy Digital: +/- 2 °C
