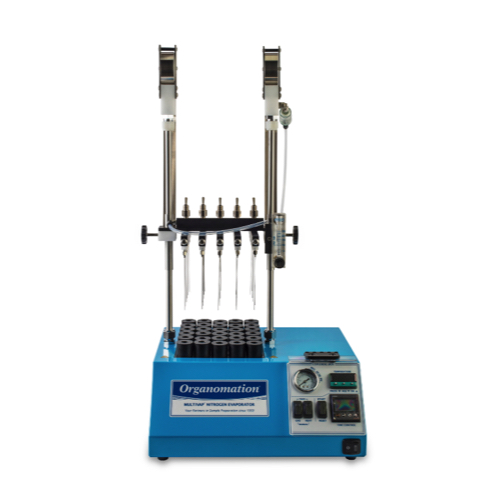

Organomation 48 Position MULTIVAP Nitrogen Evaporator (Dry Block; 39 x 36 x 76 cm; 48 sample plates)

Heater Type: Dry Block

Number of Sample Positions: 48

Overall Dimensions (W x D x H): 39 x 36 x 76 cm

Test Tube Diameter: 10-22 mm OD

Gas Manifold Layout: 6 x 8 Array

Center to Center Spacing Between Positions: 2.54 cm

Gas Flow Meter: 0-25 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19ga

Hoist Assembly: Dual Pulley and Band Springs

Built-in Gas Regulator Input: 30-110 psi

Heating Device Specifications

Model Number: 9156

Outside Dimensions (W x D x H): 39 x 36 x 15 cm

Total Wattage: 900 W

Temperature Range: 30-120 °C

Temperature Controller Type and Controller Accuracy Digital: +/- 2 °C
