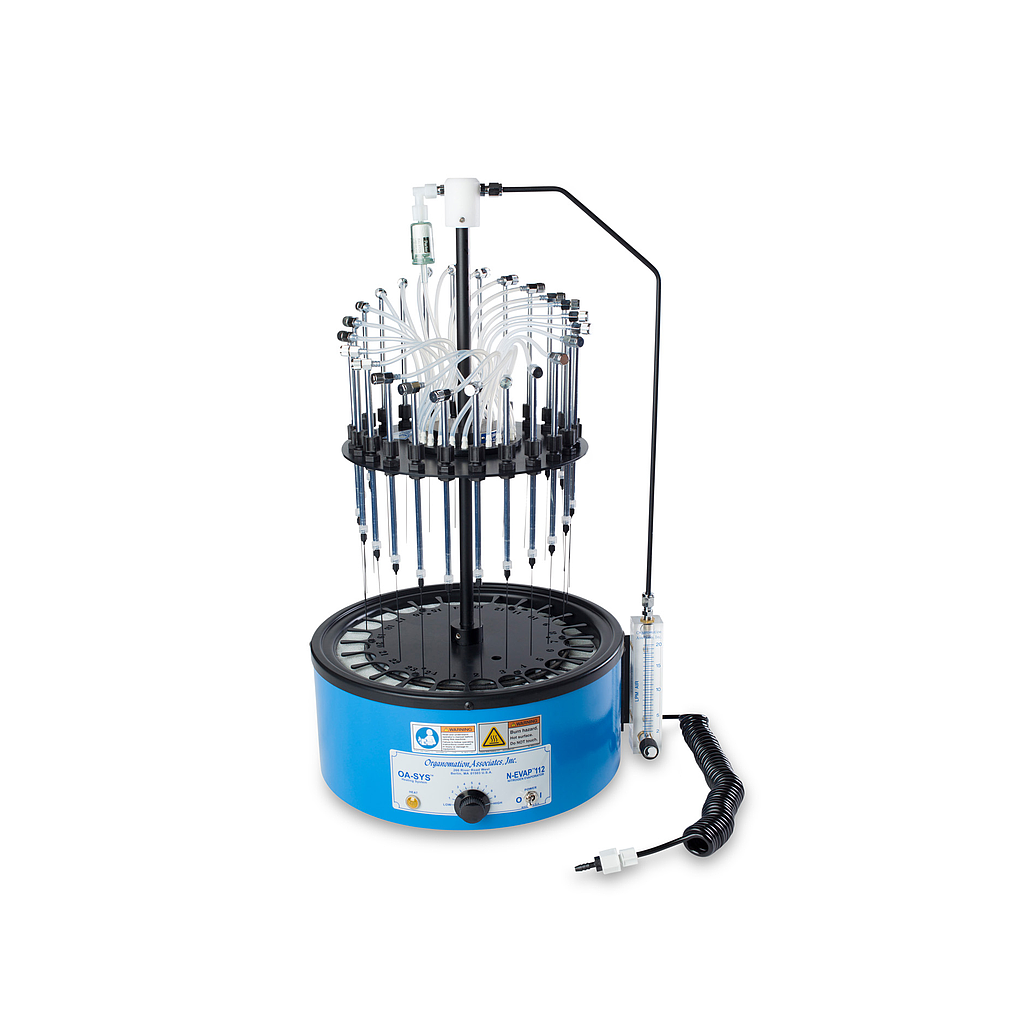

Organomation 24 Position N-EVAP Nitrogen Evaporator (Dry Bath; 41 x 38 x 70 cm; 24 sample plates)

Bath Type: Dry

Number of Sample Positions: 24

Overall Dimensions (W x D x H): 41 x 38 x 70 cm

Standard Sample Holder Test Tube Range: 10-30 mm OD

Optional Sample Holder Test Tube Range: 30-70 mm OD

Gas Flow Meter: 0-20 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19 ga

Sample Tray Lift Mechanism: None/ fixed

Standard Gas Input Range: 20-30 psi

Heating Device

Bath Model Number: 5125

Heating Medium: Aluminum Beads(Glass Beads in -RT Models)

Inside Bath Dimensions (Diameter x Depth): 30.5 x 11.4 cm

Outside Bath Dimensions: 16 x 15 x 7 cm (W x D x H)

Total Wattage: 540 W

Bath Temperature Range: 40-130 °C

Temperature Controller Type and Controller Accuracy: Mechanical +/-2°C

*Images for illustrative purposes only.
