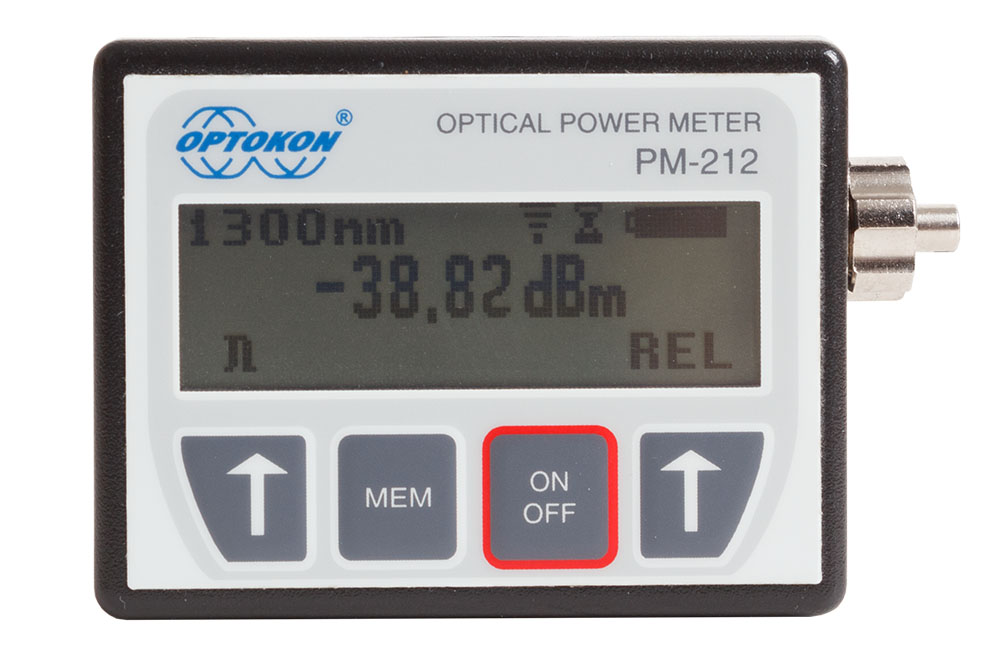

OPTOKON PM-212 Pocket optical power meter (USB Probe)

Specifications:

Photodetector : 1 mm InGaAs

Working wavelengths : 850, 1300, 1310, 1490, 1550, 1625 nm can be customized

Uncertainty ± 5% - 1310, 1550 nm @ -20dBm

Resolution 0.01

Dynamic range

-60 dBm to +10 dBm (1300, 1310, 1490, 1550, 1625 nm)

-53 dBm to +10 dBm (850 nm)

Dimensions 24 x 47 x 71 mm (including 2.5 mm universal adaptor)

Weight : Less than 90 g battery loaded

Temperature

operating : -10 to +50 °C

storage : -40 to +70 °C

Humidity (non cond.) : 0 – 95%

Operating temperature -10 to +50 °C

Battery working time > 75 hrs between battery charging

Battery life time > 2 years

Compliant with RoHS-requirements (2002/95/EG, 27.01.2003)

Standard accessories:

• Power meter

• Universal 2.5 mm adapter (TE-ADP-250)

• Power charging adapter

• Traceable calibration certificate

• USB cable

• SmartProtocol SW

• Soft case

• Hard plastic case TE-HC-01, 265 x 270 x 90 mm
