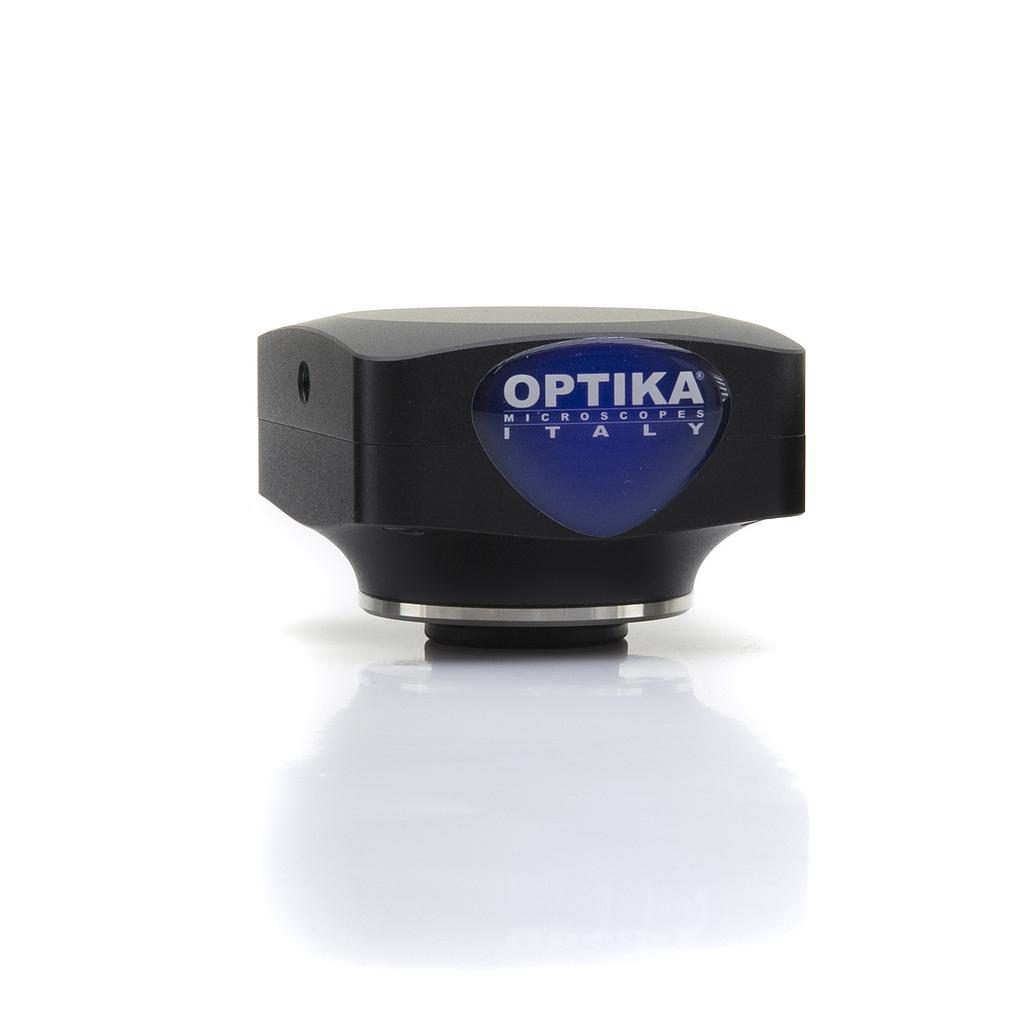

Optika C-P6 Microscope Camera (6.3 MP CMOS, USB3.0)

General Specifications

USB output: Yes

C-Mount: Yes

Dimensions (mm): 68 x 68 x 46

Weight (kg): 0.265

Sensor

Camera resolution (n° of pixels: W x H): 3072x2048

Color / Monochrome: Color

Sensor Size: 1/1.8"

Sensor Technology: CMOS

Sensor Type: SONY EXMOR

Image Format: 3/2

Pixel Size (mm): 2.4x2.4

Acquisition technology: Rolling shutter

Dynamic range (DB): 66.8

G sensitivity: 425mV at 1/30s

Dark Signal: 0.15mV at 1/30s

ADC conversion: 8 Bit - 12Bit

Color Depth: 1, 4, 8, 24 Bit

Exposure time: 0.1 msec - 15 sec

Binning: 1x1; 2x2

IR filter: Yes

IR filter range (nm): 380-650 (IR CUT)

USB

PC Camera resolution (MP): 6.3

USB standard: USB3.0

Frame rate full resolution (fps): 30@3072x2048

Frame rate other resolution (fps): 38@1536x1024
