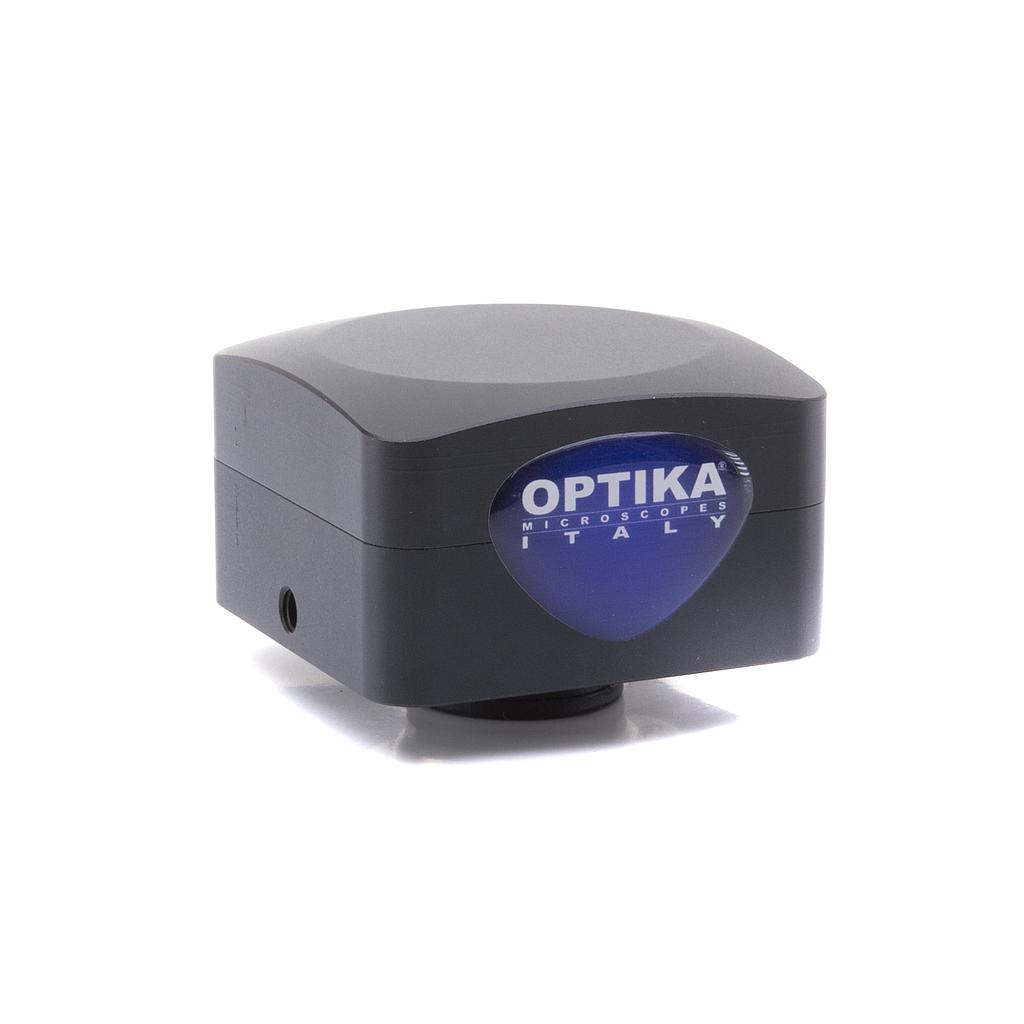

Optika C-B10+ Microscope Camera (10 MP CMOS, USB3.0)

General specifications

USB output: Yes

C-Mount: Yes

Dimensions (mm): 68 x 68 x 46

Weight (kg): 0.28

Sensor

Camera resolution (n° of pixels: W x H): 3584x2748

Color / Monochrome: Color

Sensor Size: 1/2.3"

Sensor Technology: CMOS

Sensor Type : APTINA CMOS

Image Format: 4/3

Pixel Size (mm): 1.67x1.67

Acquisition technology: Rolling shutter

Sensitivity: 0.31 V/lux-second

Signal/Noise Ratio (DB): 34

Dynamic range (DB): 65.2

ADC conversion: 8 Bit - 12Bit

Color Depth: 1, 4, 8, 24 Bit

Exposure time: 0.4 msec - 2 sec

Binning: 1x1; 2x2; 4x4

IR filter: Yes

IR filter range (nm): 380-650 (IR CUT)

USB

PC Camera resolution (MP): 10

USB standard: USB3.0

Frame rate full resolution (fps): 7.2@3584x2746

Frame rate other resolution (fps): 24.5@1792x1372
