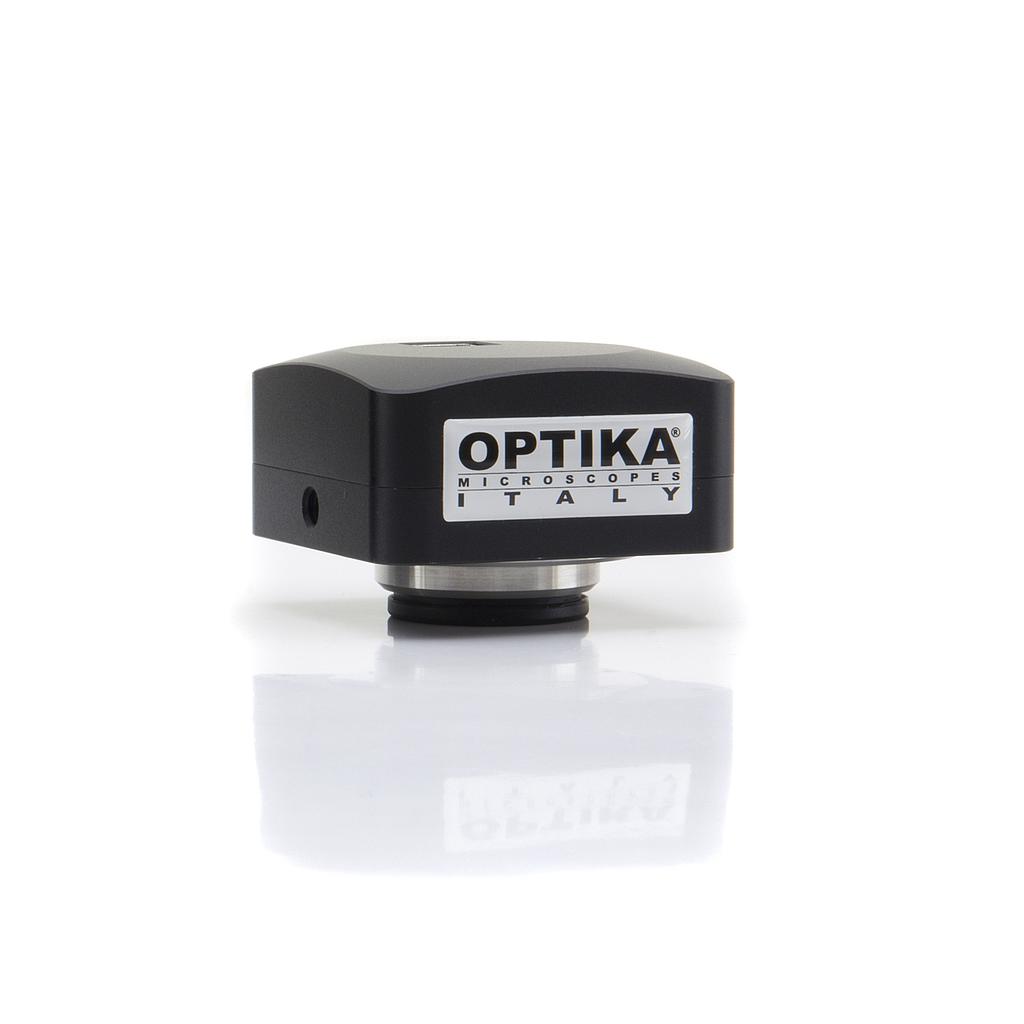

Optika C-B1 Microscope Camera (1.3 MP CMOS, USB2.0)

Sensor

Camera resolution (n° of pixels: W x H): 1280x1024

Color / Monochrome: Color

Sensor Size: 1/3"

Sensor Technology: CMOS

Sensor Type: APTINA CMOS

Image Format: 5/4

Pixel Size (mm): 3.6x3.6

Sensitivity: 1 V/lux-second

Signal/Noise Ratio (DB): 44

Dynamic range (DB): 74

ADC conversion: 8 Bit

Color Depth: 1, 4, 8, 24 Bit

Exposure time: 0.14 msec - 2 sec

Binning: 1x1; 2x2; 4x4

IR filter: Yes

IR filter range (nm): 380-650 (IR CUT)

General specifications

USB output: Yes

C-Mount: Yes

Dimensions (mm): 58 x 58 x 36.4

Weight (kg): 0.18

USB

PC Camera resolution (MP): 1.3

USB standard: USB2.0

Frame rate full resolution (fps): 15@1280x1024

Frame rate other resolution (fps): 50@320x256

Datasheet
