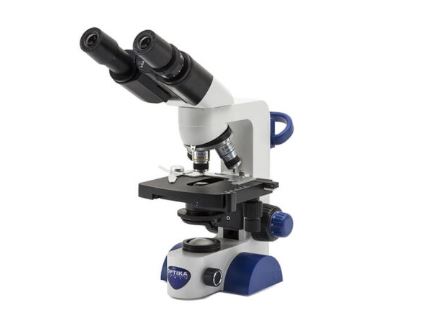

Optika B-66 Biological Microscope

Observation modeBrightfield.

HeadBinocular, 30° inclined; 360° rotating.

Dioptric adjustmentLeft eyepiece.

EyepieceWF10x/18 mm, secured by screw.

NosepieceQuadruple ball bearings revolving nosepiece, reversed.

ObjectivesAchromatic 4x/0.10, 10x/0.25 & 40x/0.65, with anti-fungus treatment.

StageStagErase™ eraseable mechanical stage, 125 x 125 mm, 62 x 24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

FocusingCoaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

CondenserAbbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination1 W LED built-in in the condenser, with brightness control.

Color temperature6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
