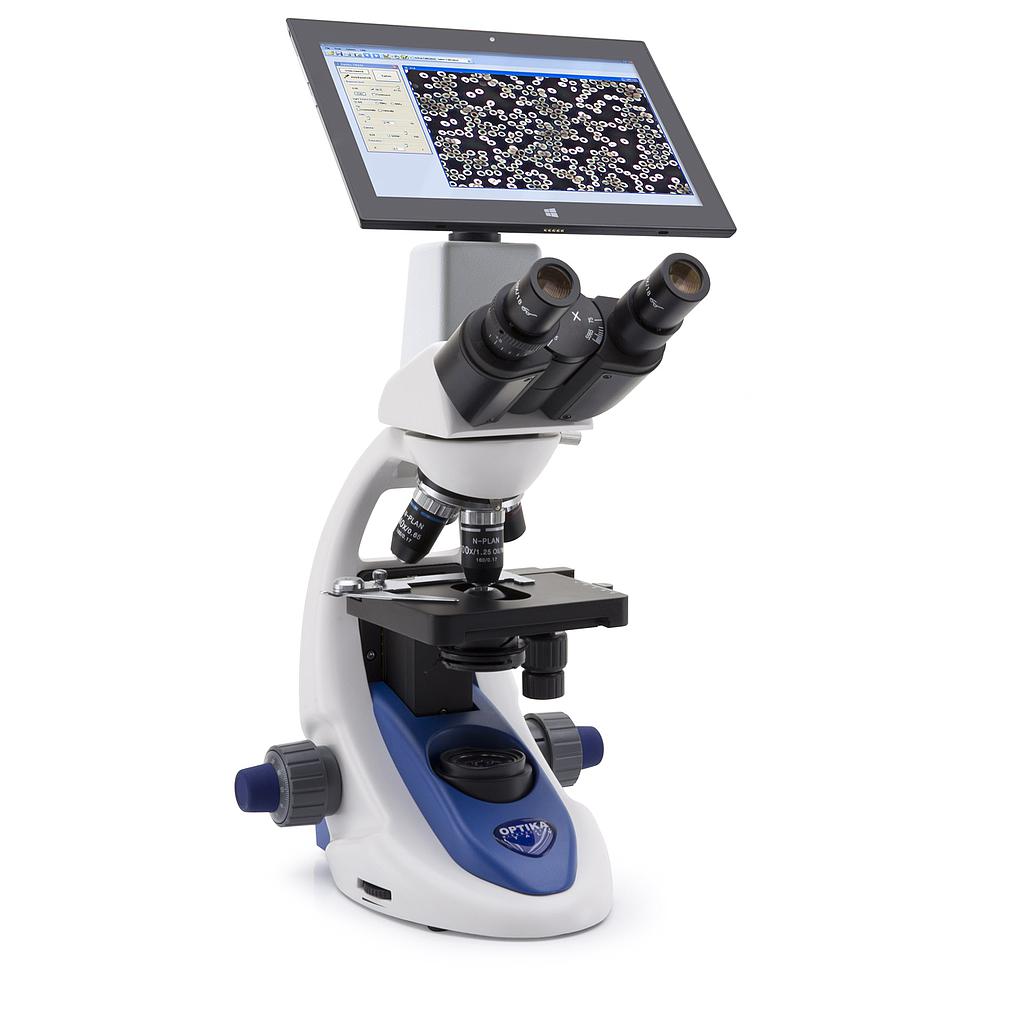

Optika B-190TBPL Digital Binocular Microscope (40X-1000X)

Main body

- Type: Upright

- Construction material: Aluminum die-cast

Head:

- Type: Binocular (Siedentopf)

- Inclination: 30°

- 360° rotating: Yes

- Interpupillary distance (mm): 48-75

- Dioptric adjustement: On left tube

- Tube inner diameter (mm): 23

Eyepieces:

- Field number (mm): 18

- Magnification: 10x

Nosepiece:

- Positions: Quadruple

- Reversed: Yes

- Bi-directional: Yes

- Rotation on ball bearings: Yes

Objectives

- Optical system: 160

- Parfocal distance (mm): 45

- Standard magnifications: 40x-1000x

- Type: N-PLAN

4x/0.10, W.D. 15.2mm

10x/0.25, W.D. 5.5mm

40x/0.65, W.D. 0.45mm

100x/1.25 (Oil/Water), W.D. 0.13 mm

Stage:

- Type: Double layer

- Dimensions (mm): 125x115

- Moving mechanism: Rack and pinion

- Moving range (mm): 70x30

- Material: Anti-scratch painting

- Specimen holder: Yes

- Slide number: 1

- X-Y movement: Yes

- X-Y Vernier scale: Yes

- Vernier scale accuracy (mm): 0.1

Power Supply for transmitted illumination

- Type: External

- Microscope connector: Jack, 2.1 mm

- Power plug type: Multi-plug (EU, UK, US)

- Input voltage: 100/240 VAC, 50/60 Hz

- Output voltage: 6 VDC 2.5A

Dimensions (HxWxD): 525x260x320mm

Weight (kg): 7.4
