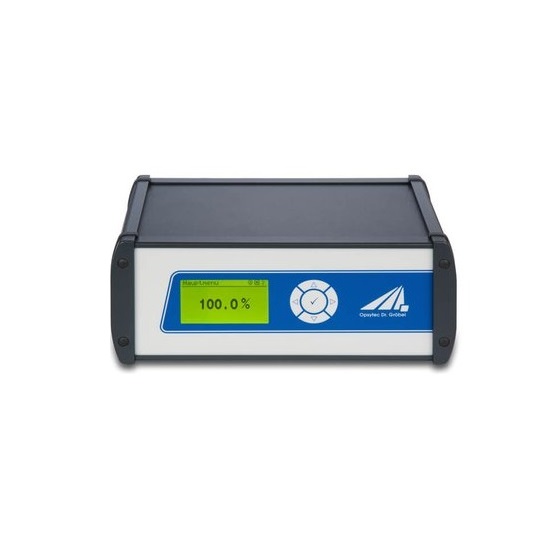

Opsytec Dr.Grobel ZPM Process photometer (0~100%, 245nm~630nm)

Measuring range: 0 to 100% transmission

Resolution: 0.01%, changeable to 0.1%

ADC: 24 bit

Calibration: 100% or reference filter

Sampling rate: 55 Hz to 0,6 Hz, adjustable

Averaging: 1 - 20, moving average

Display: graphical, 128 x 64 px

Dimensions, display unit: 185 x 251 x 100 mm

Dimensions, photometer: 160 x 110 x 30 mm

Weight: ~ 3 kg

Mains: 100 - 240 V, 50/60 Hz, 30 W

Cable: 2m, opt. up to 10 m

Lamp lifetime: typical 20.000 h

Operating temperature: 10 to 40 °C

Humidity: <80%, non-condensing

Output signal, opt.: 4 - 20 mA, 0-10 V

Relay contact, opt.: 2 x 250 V, 1 A

Interface: USB

Delivery

Photometer, display unit, mains cable, USB cable, PC software

>> Please specify wavelenght during ordering.
