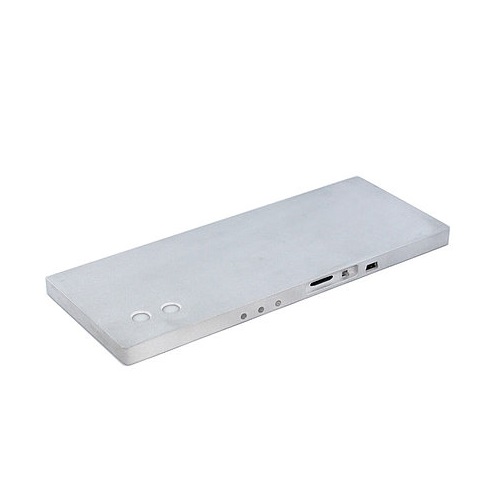

Opsytec Dr.Grobel 824202 TinyTracker (0-200 mW/cm² or 0-2 W/cm²)

Measuring range: 0-200 mW/cm² or 0-2 W/cm²

Resolution: 12 bit

Recording time: up to 3 hours

Sampling frequency: 2 - 25 Hz, adjustable

Nunber of sensors: 1-2

Sensor position: single or double sided

Cosine correction: yes

Spectral ranges: UVC, UVB, UVA, UVA+, VISB, VISBG or LUX

Dimensions tinyTracker: 195 x 79 x 10 mm

Operating temperature: up to 60 °C

Power supply: internal Li-Ion battery

Interface: MiniUSB

System requirements

Windows 10 / 7

300 MB HDD, 1 GB RAM

Delivery

tinyTracker, manufacturers certificate of calibration, USB cable, wall plug adapter, carrying case

Datasheet

Features

• Low height of only 10 mm

• Fast data recording with up to 25 measurements per second

• Measurement of irradiance and dose

• Selectable spectral range

• Single- and dual-channel versions, optional double-sided measurement
