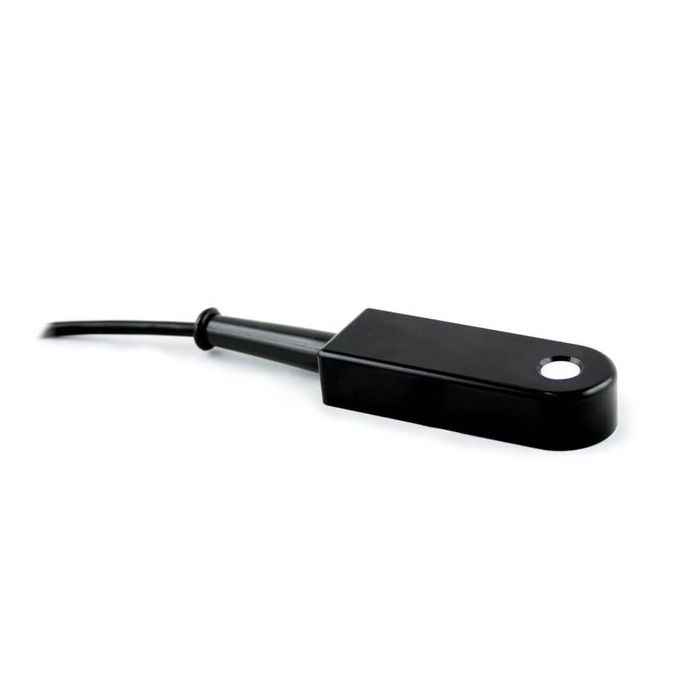

Opsytec Dr.Grobel Sensor FLT PLC UV inline sensor FLT for PLC (200~780 nm, 0~20 W/cm²)

Sensor Spectral Ranges

UVC: 200 - 280 nm

UVB: 280 - 315 nm

UVA: 315 - 400 nm

UVA+: 330 - 455 nm

UVBB: (broad-band) 230 - 400 nm

VISB: 400 - 480 nm

VISBG: 400 - 570 nm

LUX: 380 - 780 nm, V(λ)

Measurement range

0 - 200 mW/cm²

0 - 20 mW/cm² (opt.)

0 - 2 W/cm² (opt.)

0 - 20 W/cm² (opt.)

Dimensions: 68 x 25 x 15 mm

Weight: ~ 70 g

Operation temperature: 0 to 60 °C

Storage temperature: -10 to 60 °C

Humidity: < 80% non-condensing

Delivery

FLT sensor, factory calibration certificate

>> Please specify sensor, spectral range, measuring range when ordering.

Datasheet

Features

• Direct PLC operation

• Long-term stability

• Eight spectral ranges

• Four measurement ranges
