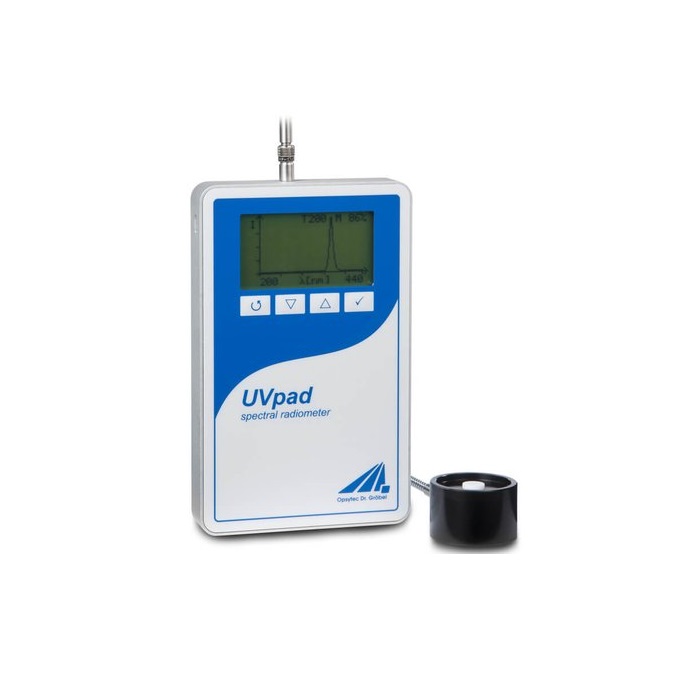

Opsytec Dr.Grobel UVpad E Spectral Radiometer (2~5000mW/cm², 240~480nm)

Spectral range: 240 - 480 nm ± 5 nm

Spectral bandwidth: 2 nm

Pixel distance: ~ 0,5 nm

Irradiance meas. range (typ.): 2 - 5000 mW/cm²

Resolution: 0,01 mW

Dose measurement range: 0,01 mJ/cm² - 600 J/cm²

Data storage rate: 100 Hz to 1 Hz, adjustable

Measurement time: 5 s to 8 min, depeding on data storage rate

Memory: 50 measurements

Sampling rate: 10 ms - 10 s

Display: graphical, 128 x 64 px

Dimensions: 160 x 100 x 14,4 mm³

Weight: ~ 500 g

Operation temperature: 0 to 60 °C

Storage temperature: -10 to 60 °C

Humidity: < 80% non-condensing

Batteries: 3 x CR2032

Interface: USB

System requirements: Windows 10 or 7, 300 MB HDD, 1 GB RAM

Calibration: traceable to PTB/NIST

Cosine correction: yes

DELIVERY

UVpad E, optical fibre 1.5 m, external sensor type 1 (if not secified), manufacturers certificate of calibration, software, USB cable and case

Datasheet

Manual

Features

Spectral radiometric measurements without a PC

• Additional use on PC as spectrometer

• Designed for UV measurements

• Internal memory for 50 measurements with irradiance profile

• 240 - 480 nm (total UV spectral range)

• Spectral resolution 2 nm

• 0.5 nm pixel distance & 512 photo diodes
