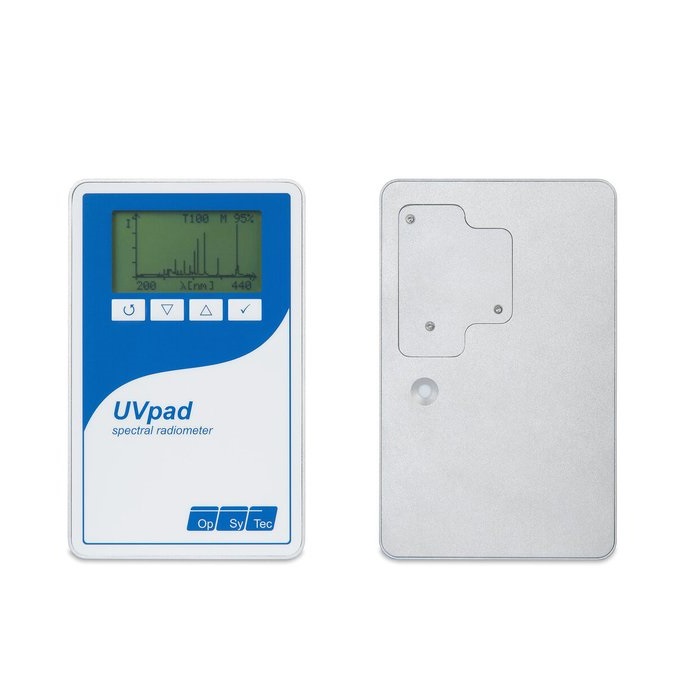

Opsytec Dr.Grobel UVpad UV Radiometer (2~5000 mW/cm², 200~440nm)

Standard specification

Spectral range: 200 - 440 nm ± 5 nm

Spectral bandwidth: 2 nm

Irradiance meas. range: 2 - 5000 mW/cm²

Dose measurement range: 1 mJ/cm² - 600 J/cm²

Resolution: 0.1 mW/cm² / 1 mWcm²

Calibration: traceable to PTB/NIST

Calibration: uncertainty typ. 5,0% - 9,5%

Cosine correction: Yes

Data storage rate: 100 Hz to 1 Hz, adjustable

Measurement time: 5 s to 8 min depeding on data storage rate

Sampling rate: 10 ms - 1000 ms

Display: graphical, 128 x 64 px

Dimensions: 160 x 100 x 14,4 mm³

Sensor position: at the rear side

Weight: ~ 375 g

Operation temperature: 10 - 70 °C briefly for up to 60s at 120°C ambient temperature

Batteries: 3 x CR2032

Memory: 50 measurements

Interface: USB

System requirements: Windows 10

DELIVERY

UVpad, PC-software, manufacturers certificate of calibration, USB cable and case

Datasheet

Manual

Features

• Spectral radiometric measurements without a PC

• 200 - 440 nm (total UV spectral range)

• 512 photo diodes

• Battery operated

• Height only 14,4 mm

• USB for data export

• Internal memory for 50 measurements
