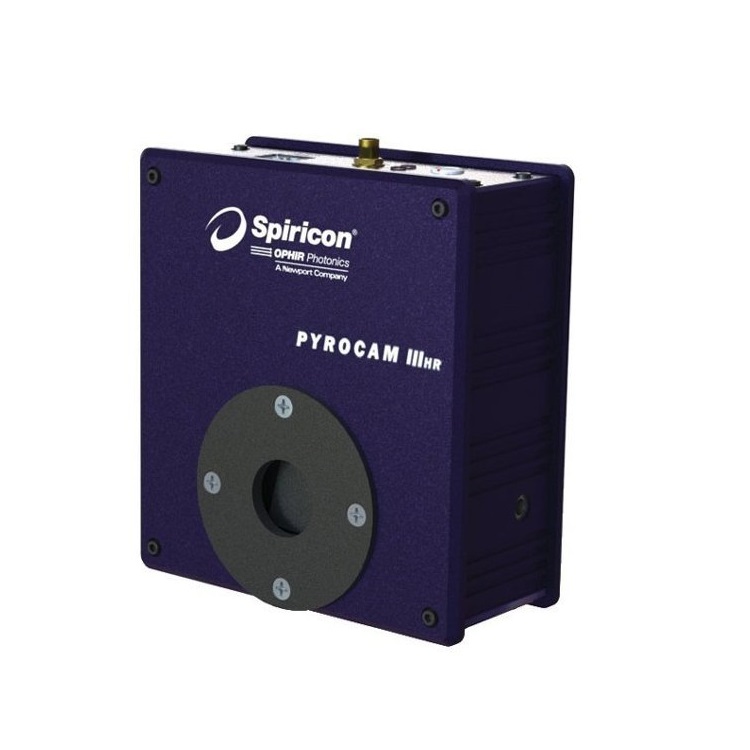

Ophir Pyrocam IIIHR Beam Profiling Camera (3 - 5µm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Application: MIR
Wavelengths: 3 - 5µm
Beam Sizes: 1600μm - 12.3mm
Interface: GigE
Sensor Type: Pyroelectric Array
Compatible Light Sources: CW, Pulsed
Active Area: 12.8mm x 12.8mm
Number of effective pixels: 160 x 160
Effective Pixel Pitch: 80µm
Dynamic Range: 60 dB
Power: 12VDC
Power consumption: 12W
Operating temperature: 5°C to 50°C
Dimensions: 140mm H X 130mm W X 60mm D
Weight: 0.85Kg (1.83lbs)
Frame Rate at Full Resolution: 100 fps
Compliance: CE, UKCA, China RoHS
BeamGage Professional: PY-III-HR-C-MIR-PRO
