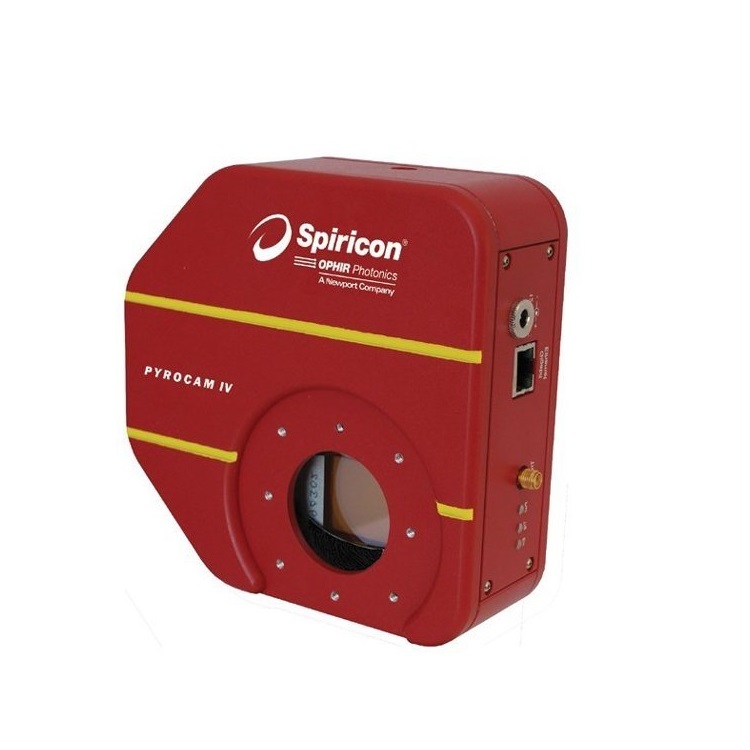

Ophir Pyrocam IV Beam Profiling Camera (13 - 355nm, 1.06 - 3000µm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Application: UV and IR
Wavelengths: 13 - 355nm, 1.06 - 3000µm
Beam Sizes: 1600μm - 25.4mm
Interface: GigE
Sensor Type: Pyroelectric Array
Compatible Light Sources: CW, Pulsed
Active Area: 25.6mm x 25.6mm
Number of effective pixels: 320 x 320
Effective Pixel Pitch: 80µm
Dynamic Range: 60 dB
Power: 12VDC
Power consumption: 12W
Operating temperature: 5°C to 50°C
Dimensions: 147.3mm H X 147.1mm W X 55.2mm D
Weight: 1.2kg (2.65lbs)
Frame Rate at Full Resolution: 100 fps
Compliance: CE, UKCA, China RoHS
BeamGage Professional: PY-IV-C-A-PRO
