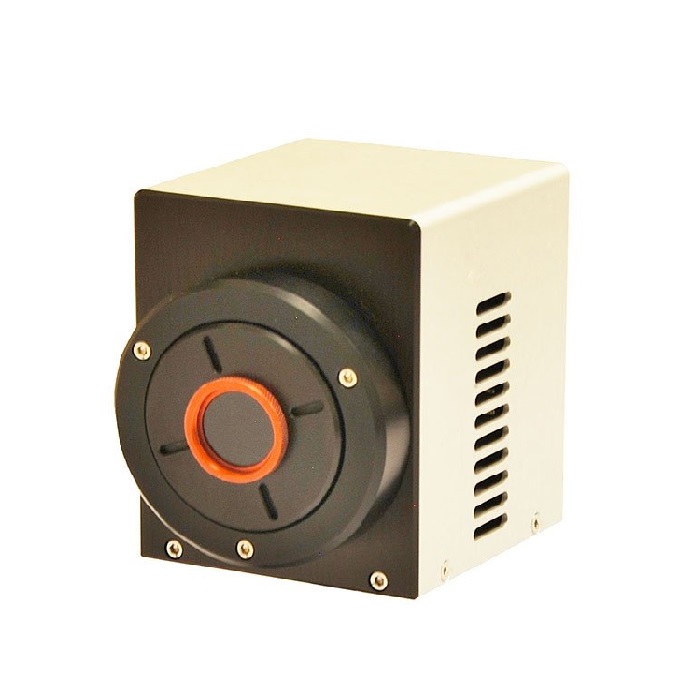

Ophir XC-130 Beam Profiling Camera (900-1700nm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Wavelengths: 900-1700nm
Beam Sizes: 300µm-7.4mm
Pixel spacing: 30μm square
Interface: GigE
Sensor Type: InGaAs
Compatible Light Sources: CW, Pulsed
Active Area: 9.6 x 7.6mm
Number of effective pixels: 320 x 256 (QVGA)
Dynamic range: 68dB/60dB
Frame Rate: 100Hz
Ambient operating temperature: 0 - 50° C
Dimensions: 111mm x 87mm x 107mm
Weight: 1.8kg
Compliance: CE, UKCA, China RoHS
BeamGage Professional: BGP-USB-XC130
