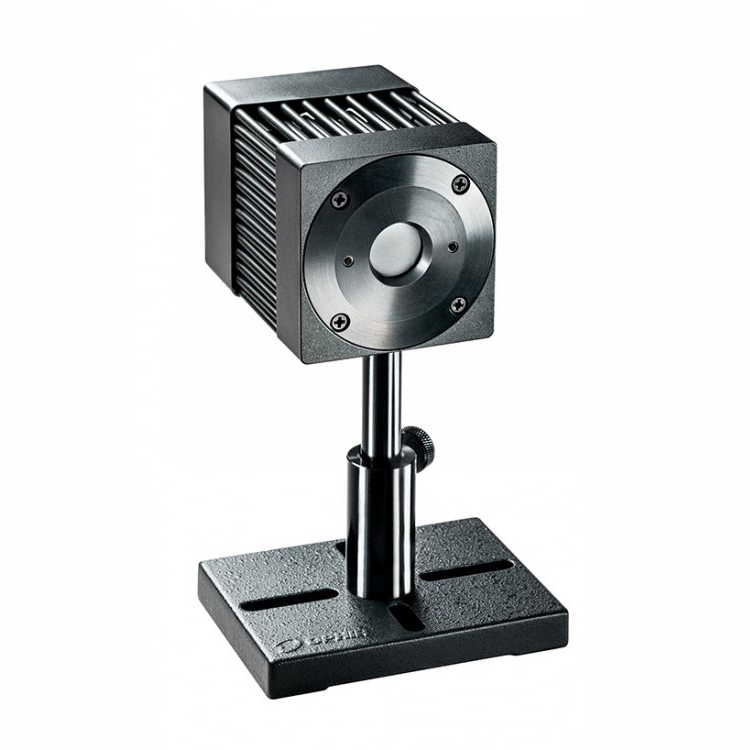

Ophir F150(200)A-CM-16 Low-Medium Power Thermal Sensor (300mW-200W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: CM
Aperture: Ø16mm
Spectral Range: 0.248μm-9.4μm
Power Range: 300mW-200W
Energy Range: 50mJ-200J
Dimensions: 64 L x 64 W x 93 D (mm)
Max Pulse Energy: 200J
Max Average Power Density: 35kW/cm²
Response Time: 3 s
Max Energy Density (for <100ns): 0.7J/cm²
Max Energy Density (for 2ms): 45J/cm²
Max Average Power: 200W
Compliance: CE, UKCA, China RoHS
